Equipotential busbar for indoors, VDE-tested 217 | 63 | 67.5 | | Grey

Equipotential busbar for indoors, VDE-tested

Item no. 5015650 | EAN 4012195378556

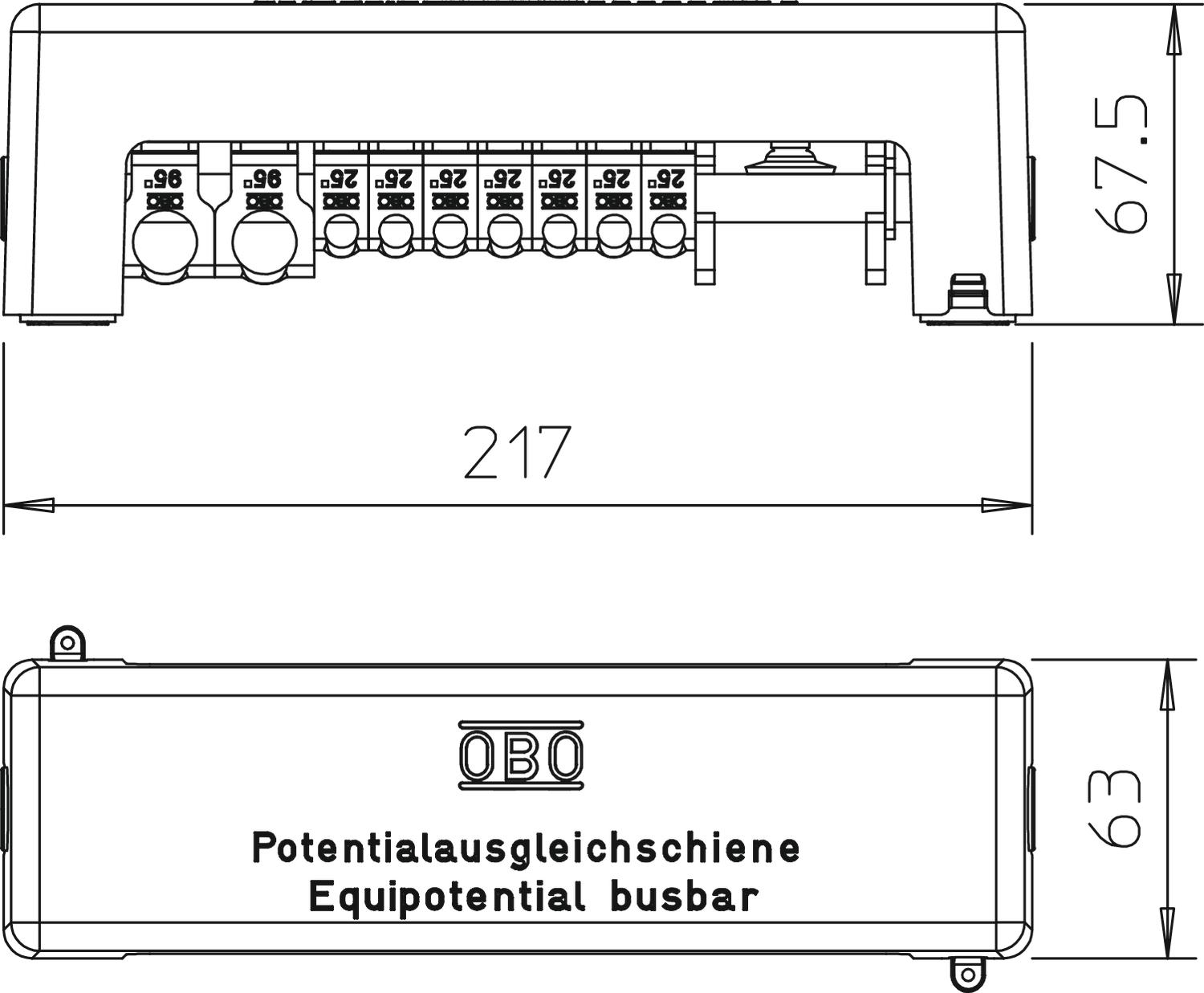

Item no. / Types

Length	217 mm

Width	63 mm

Height	67.5 mm

Colour	Grey

Product description

Product description

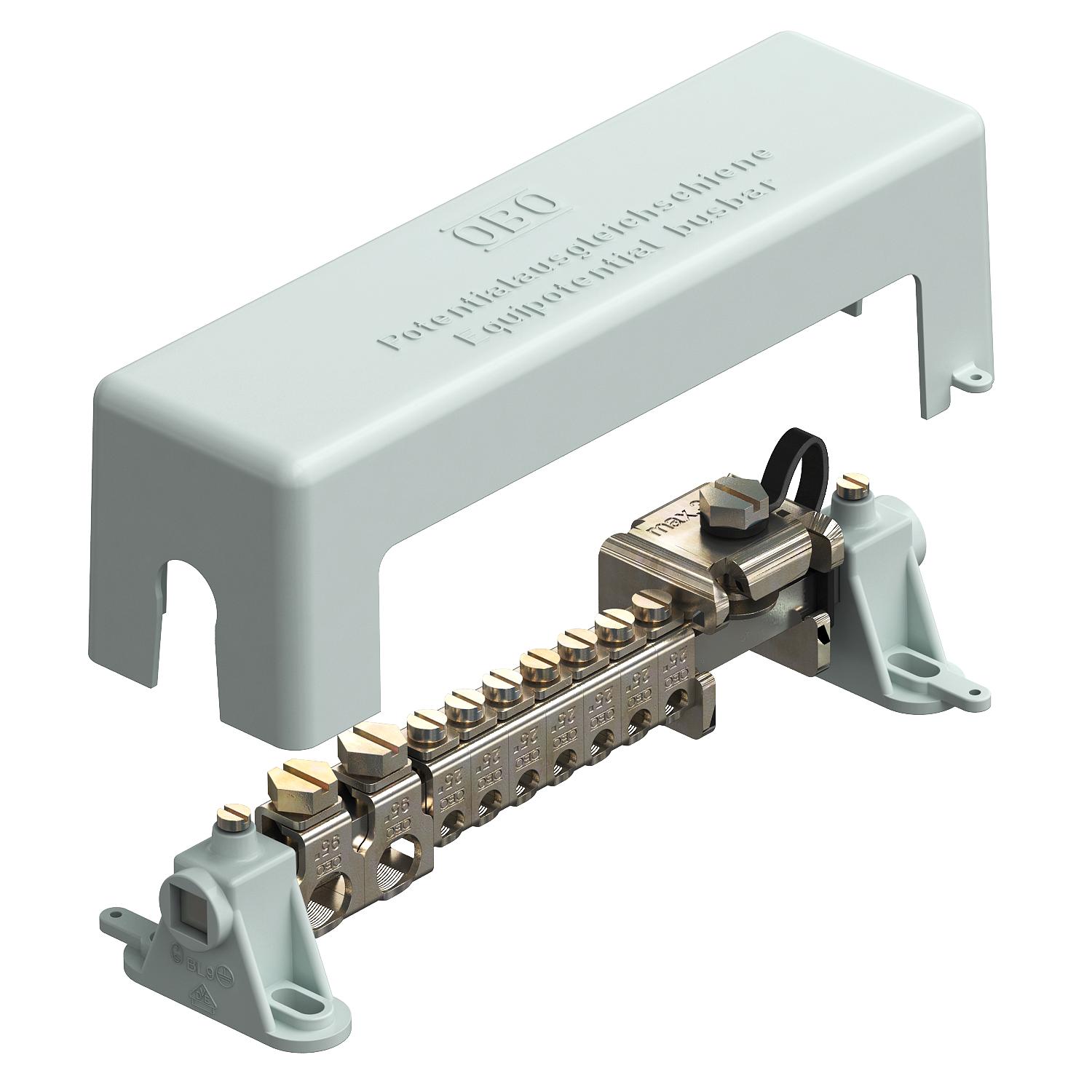

Equipotential busbar for equipotential bonding to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding to DIN VDE 0185-305

• According to VDE 0618, Part 1
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable/labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)

Connection options:
• 7 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 2 single or multi-wire cable 25–95 mm² or fine-wire cables to 70 mm² (max. Ø 13.5 mm)
• 1 flat conductor 30 x 3.5 mm

With sealable cover hood,
made from impact-resistant plastic

Technical data

Technical data

Colour	Grey
CO₂ Footprint (GWP) Cradle-to-Gate	1,668 kg CO₂e / 1 Piece
Dimension	217mm
Height	67,5 mm
Insulator	yes
Length	217 mm
Material	Brass
Material of the contact rail	Brass
Material of the terminal	Steel

Quantity of cable connections up to 25 mm², rigid	7
Quantity of cable connections up to 95 mm², rigid	2
Quantity of flat conductor connections up to 30 mm	1
Surface of the contact rail	Nickel-plated
Surface of the terminal	Electrogalvanised
Type	Modular structure
Version for	With cover hood
Width	63 mm
