Flat cable threaded connection, PG thread rectangular version, stone grey 37 | 40 | 11 | 14 | Pg 29
morepic-1 morepic-2

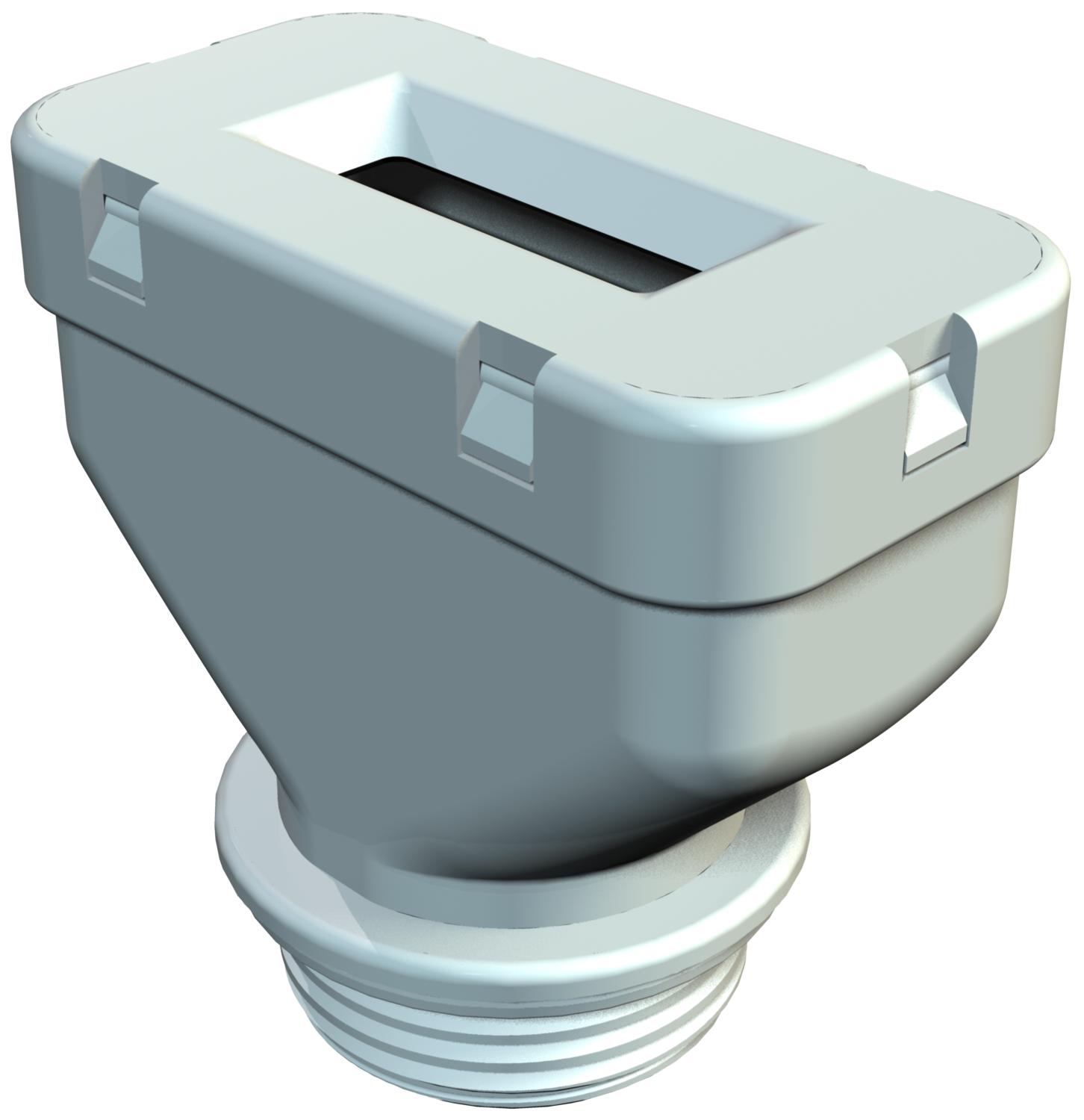

Flat cable threaded connection, PG thread rectangular version, stone grey

Item no. 2012774 | EAN 4012195156857

Product description

Product description

Flat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
  • Protection rating IP 31
  • Thread Pg
Technical data

Technical data

Bend protection no
Colour Stone grey; RAL 7030
Dimension PG29
Fibre-glass reinforced no
Flat cable gland yes
For Ex zone Without
Impact-resistant no
Material Polyethylene
Protection rating IP31
Sealing insert, multiple no
Strain relief option no
Thread Pg 29
Thread type PG
Type of seal Sealing ring
With locknut no

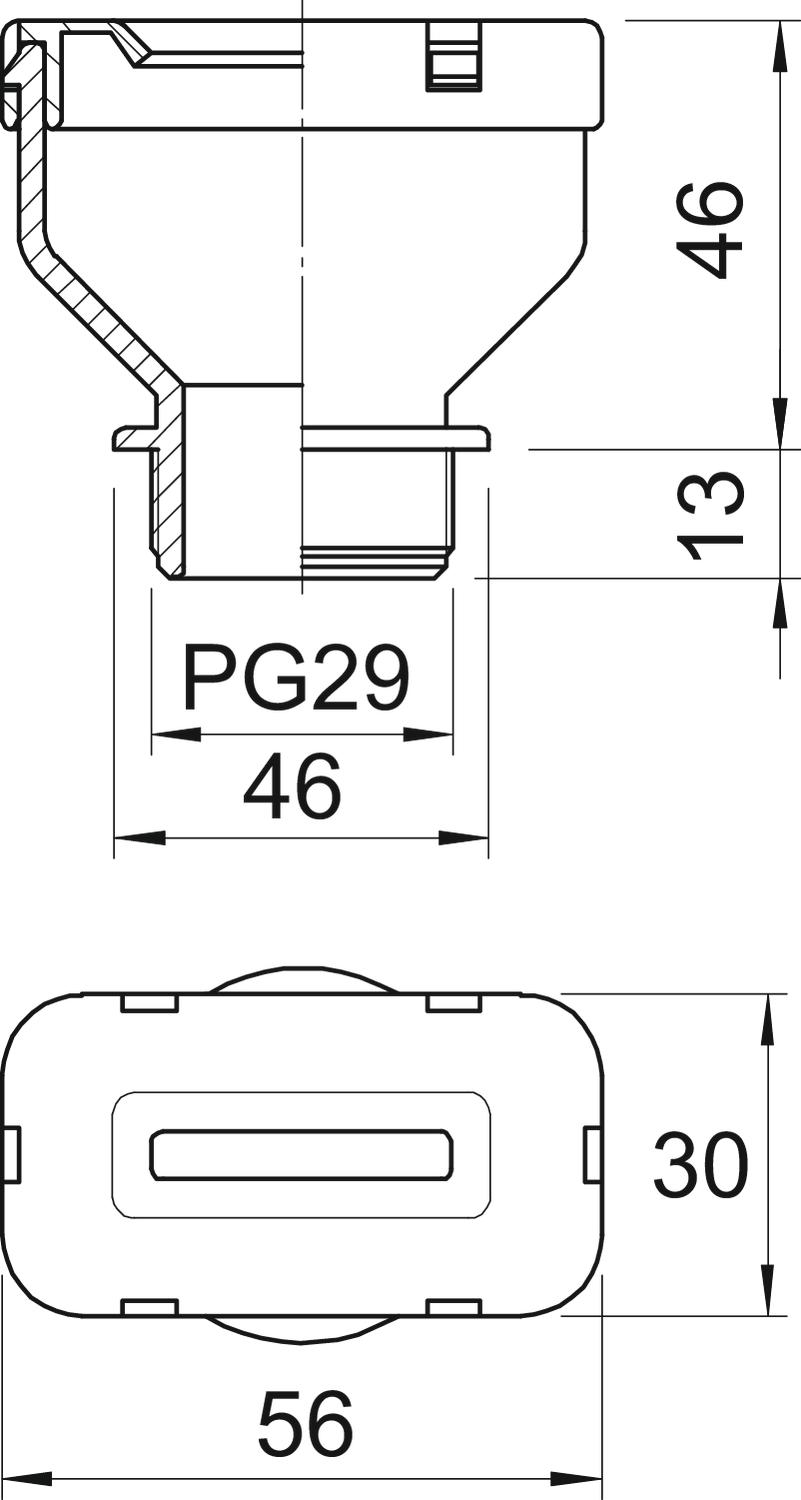

Dimensions

Dimension A 30 mm
Dimension B 56 mm
Dimension D 46 mm
Dimension G PG29 mm
Dimension L 59 mm
Dimension L1 13 mm
Dimension L2 46 mm
Flat cable/width, max. 40 mm
Flat cable/width, min. 37 mm
Flat cables/thickness, max. 14 mm
Flat cables/thickness, min. 11 mm
All types

All types

Types Flat cable/width, min. Flat cable/width, max. Flat cables/thickness, min. Flat cables/thickness, max. Thread Item no. Quantity SSU
106 FL 29 14 40 37 mm 40 mm 11 mm 14 mm Pg 29 2012774
15 piece
106 FL 21 6 30 27 mm 30 mm 4 mm 6 mm Pg 21 2012855
25 piece
