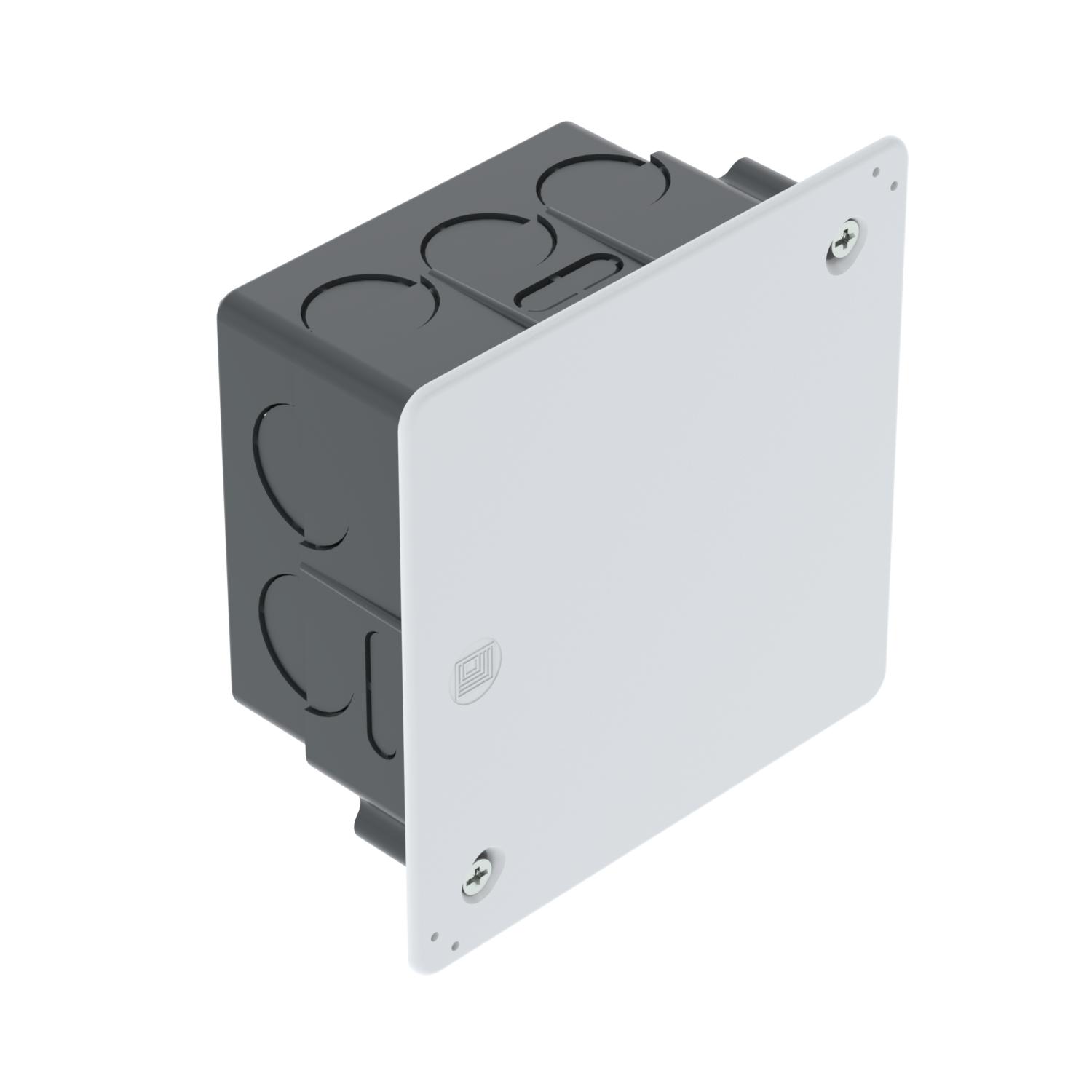

Flush-mounted connection box 80

Item no. 2003112 | EAN 4012195020479

2003112 / UV 80 K
45 mm
16/19 mm
18
Product description

Product description

Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 45 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.

• 6 side entries of Ø 19 mm

• 4 side entries of Ø 21.5 mm

• 4 side entries for flat cables/ribbon cables

• 2 entries of Ø 21.5 mm in the base

• 2 entries for flat cables/ribbon cables at the base
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 20
Technical data

Technical data

Airtight no
Colour Black
Cover Not transparent
Cover fastening Screwed

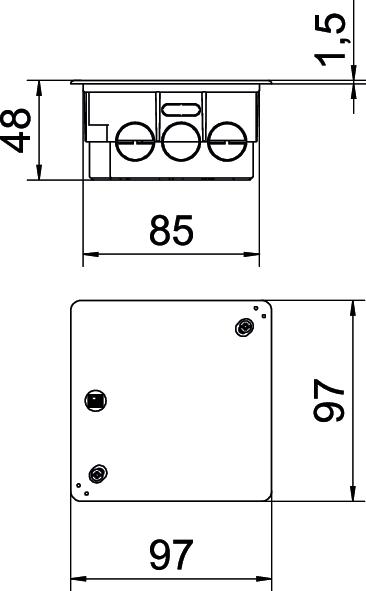

Dimension 80x80x45
Dimension A 102 mm
Dimension B 97 mm
Dimension H 45 mm
Dimension L 85 mm
Entries 18
Entry from rear no
Equipment Without
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Floor height, min. 47 mm
for pipe diameter 16/19 mm
Halogen-free no
Height 45 mm
Impact-resistant yes
Length 80 mm
Maintain electrical functions Without
Material Polystyrene
No. of entries 18
Nominal cross-section, min. 4 mm²
Protection rating IP20
Rated voltage 400 V
Sealable no
Shape Square
Support Without
Type of housing penetration Pre-marking
Type of insertion… NYM cables, data cables and corrugated pipes
Width 80 mm
With bolts no
With nail strap no
With screening no
All types

All types

Types Height for pipe diameter No. of entries Item no. Quantity SSU
UV 80 K 45 mm 16/19 mm 18 2003112
50 piece
