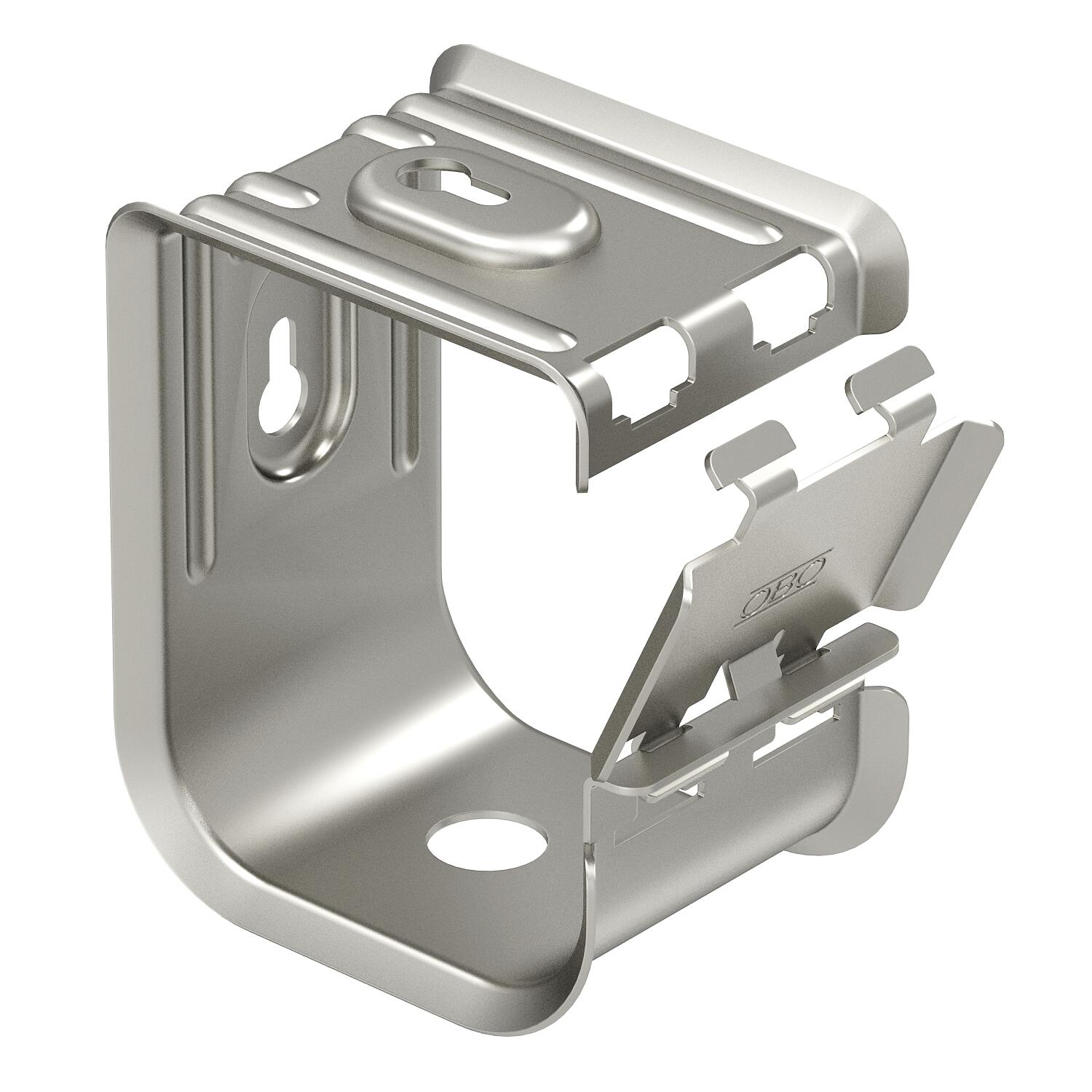

Grip collection clamp, metal 70 A2
Item no. 2207112 | EAN 4012195809449
- Product description
-
Product descriptionMetal cable tidy for high mechanical stability, even in case of fire. Suitable for safe mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 part 12. For wall and ceiling mounting. The lock can be opened without tools.
Detailed information on the approved routing variants can be found in the appropriate testing documentation.
-
- Technical data
-
Technical data
CO₂ Footprint (GWP) Cradle-to-Gate 2,4873 kg CO₂e / 1 Piece Dimension 70x NYM3x1,5 Halogen-free yes Maintain electrical functions yes Material Stainless steel No. of conductors NYM 3 x 1.5 70 Surface Bright, treated With anchor no - All types
- Downloads
-
Data sheet 2031 M 70 A2 / 2207112 , 0.32MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2031 M 70 A2 / 2207112 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 2031 M 70 A2 / 2207112 , 0.09MB , pdfLabel approval UL certificate, Grip grouped support , 0.33MB , pdfMounting instructions Grip M grouped support 2031 M , 0.80MB , pdf
