Hammer-head bolt with spring ZL 35 | 20 | 8 | M10x30
morepic-1 morepic-2

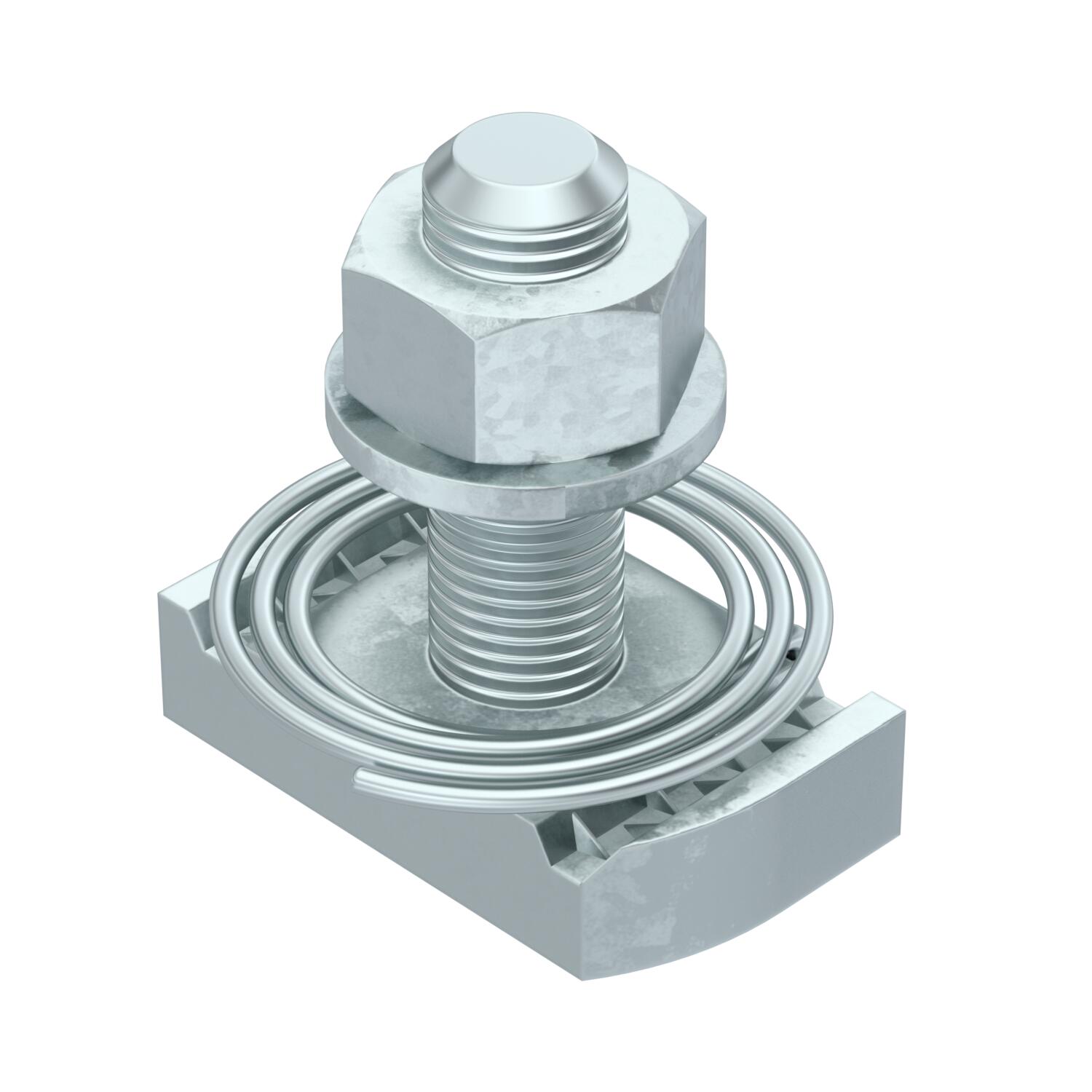

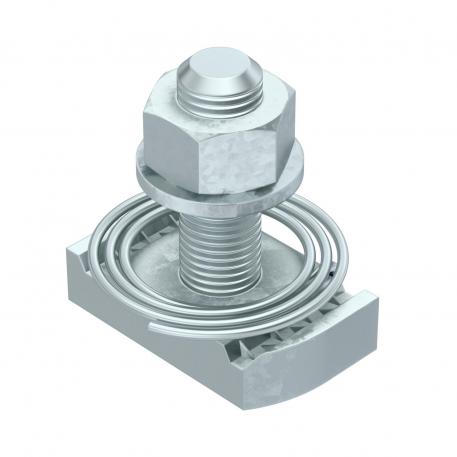

Hammer-head bolt with spring ZL

Item no. 1148356 | EAN 4012197431068

35 mm
20 mm
Product description
Product description
Hammer-head bolt with spring for use with MS4121 and MS4141 profile rails.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

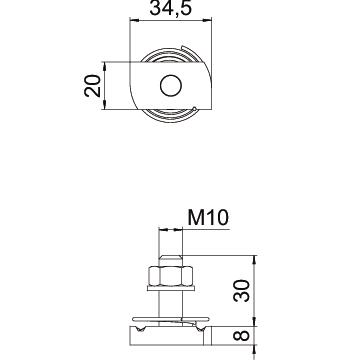

Dimension M10x30mm
Dimension H 8 mm
Dimension L 30 mm
Height 8 mm
Length 35 mm
Material Steel
Suitable for mounting rail yes
Surface Zinc slat
Thread M10x30
Thread metric 10
Torque 15 Nm
Washer Ø 20 mm
Width 20 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41HBF M8x30 ZL 35 mm 20 mm 8 mm M8x30 1148352
50 piece
MS41HBF M8x60 ZL 35 mm 20 mm 8 mm M8x60 1148354
25 piece
MS41HBF M10x30ZL 35 mm 20 mm 8 mm M10x30 1148356
50 piece
MS41HBF M10x60ZL 35 mm 20 mm 8 mm M10x30 1148358
25 piece
MS41HBF M12x30ZL 35 mm 20 mm 9 mm M10x30 1148360
50 piece
MS41HBF M12x60ZL 35 mm 20 mm 9 mm M12x60 1148362
25 piece
