HoverCube VH-8, empty housing
Item no. 6109821 | EAN 4012195287391
- Product description
-
Product description

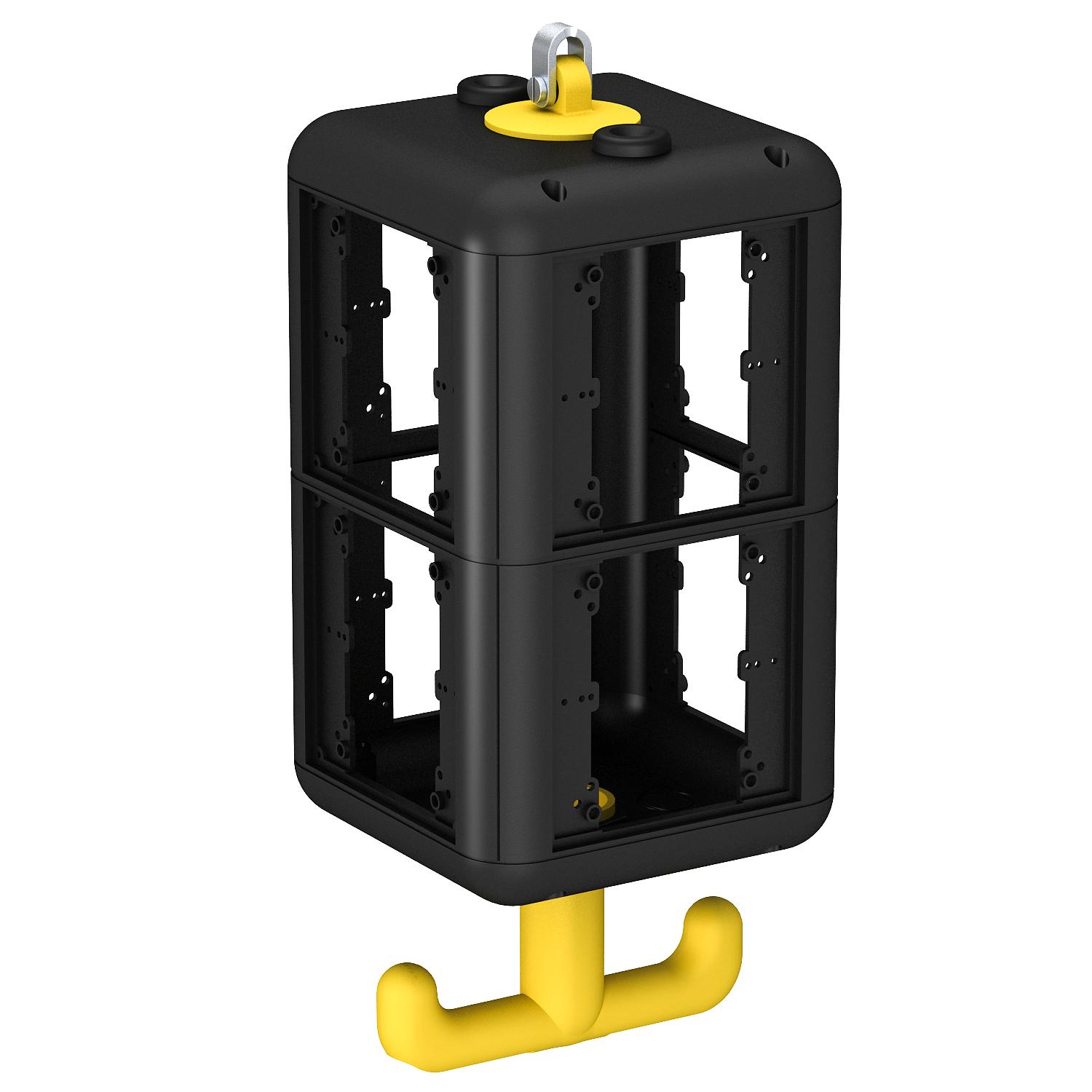

Empty housing with suspension lug and grip hook, for the installation of eight electrical resources, with included partition. Without cover plates.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
-
- Technical data
-
Technical data
CEE socket, 125 A Without CEE socket, 16 A Without CEE socket, 32 A Without CEE socket, 63 A Without Colour Graphite black; RAL 9011 Depth 140 mm Dimension 140x140x352 FI protection switch Without Handling abhängbar Material Polyamide Military version no Other installations and/or empty slots 8 Protection rating IP20 Supply/connection option Miscellaneous Dimensions

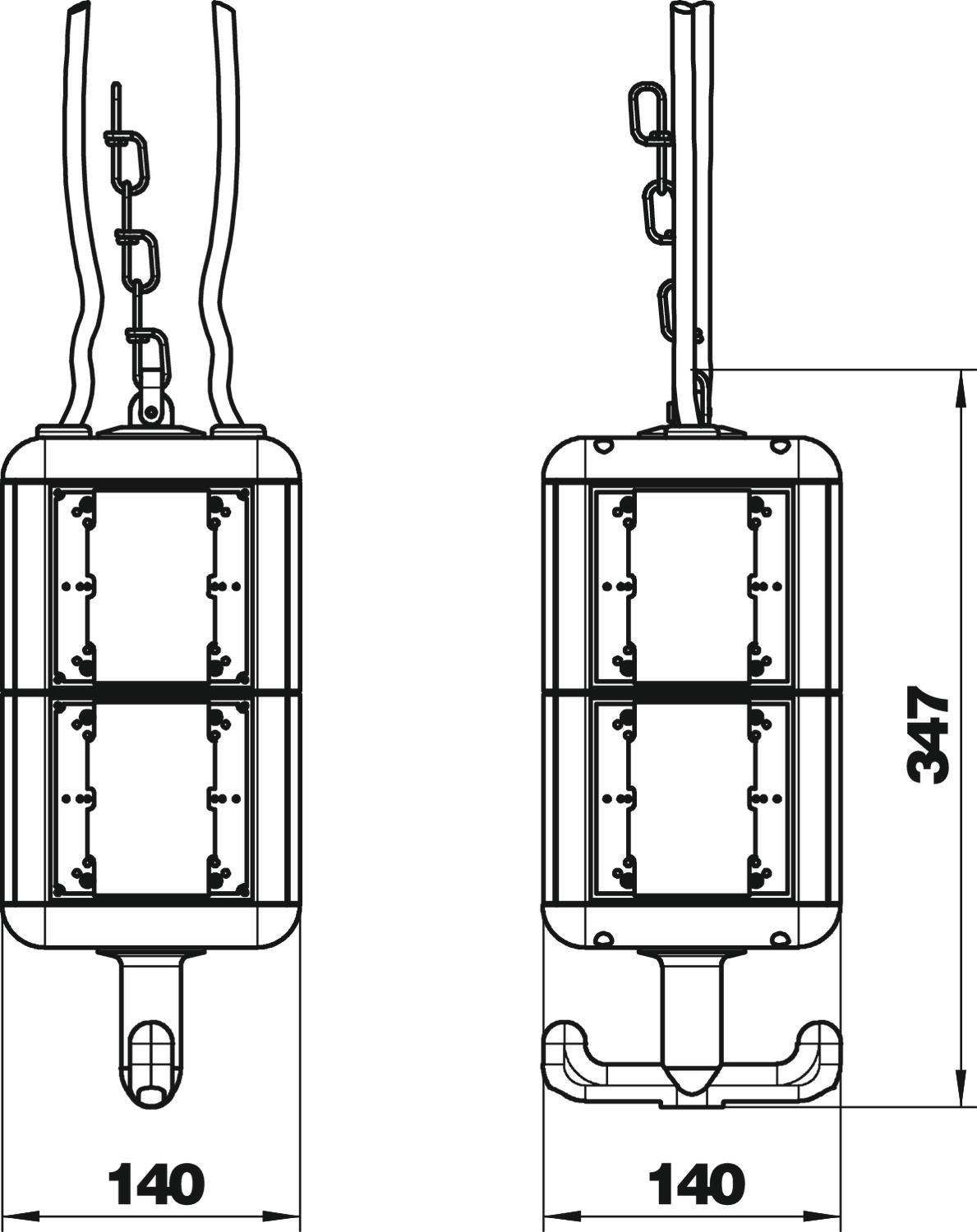

Height 347 mm Width 140 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Knotted chain
VH-K800 6109870 1 m
Positioner for power supply units VH
VH-POS 6109887 1 piece - Downloads
-
