Insulated air-termination rod for inner-routed isCon® conductor 4000 |

Insulated air-termination rod for inner-routed isCon® conductor

Item no. 5408854 | EAN 4012196647842

Item no. / Types	5408854 / isFang IN L4

Length	4000 mm

Product description

Product description

• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)

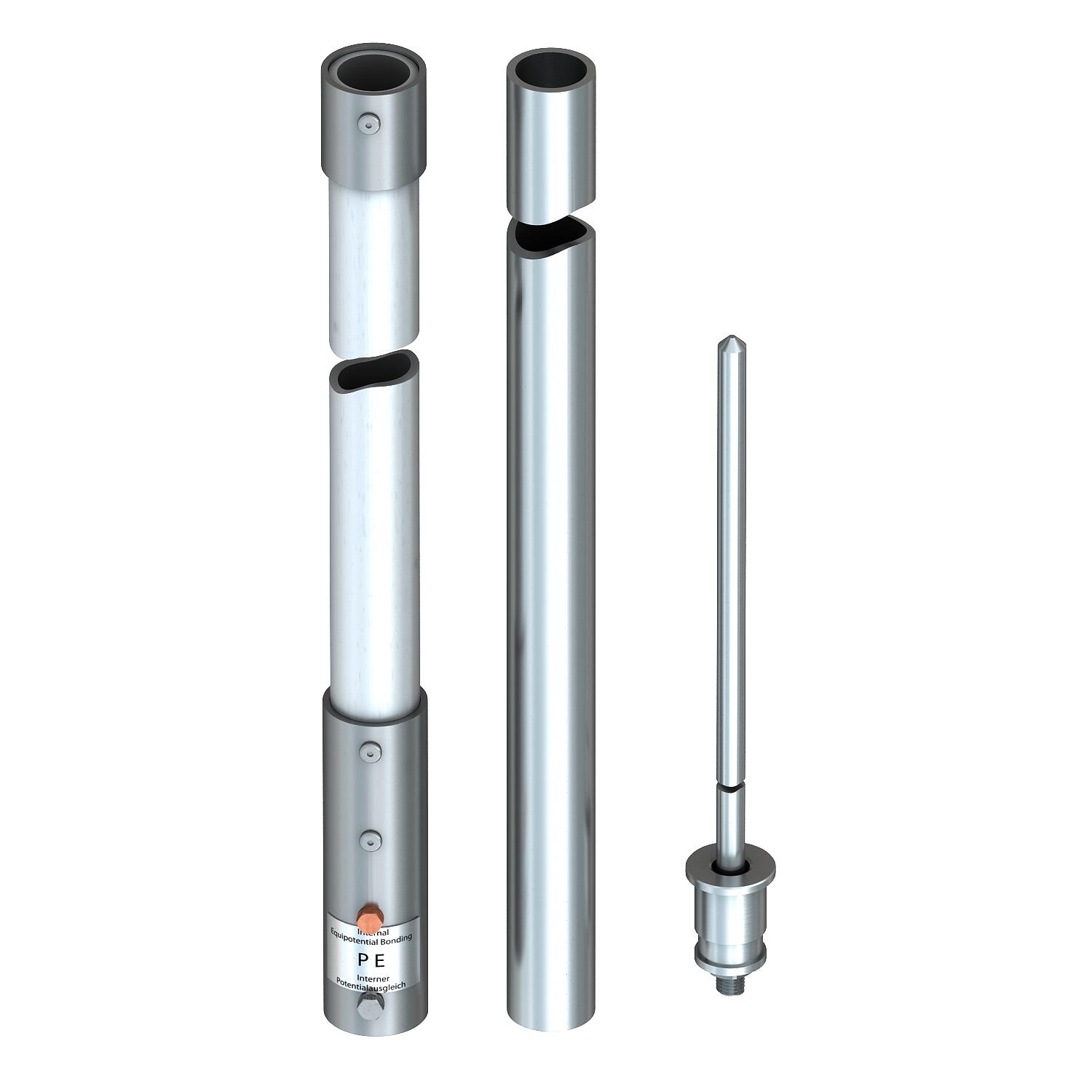

• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)

Technical data

Technical data

Connection	Round conductor

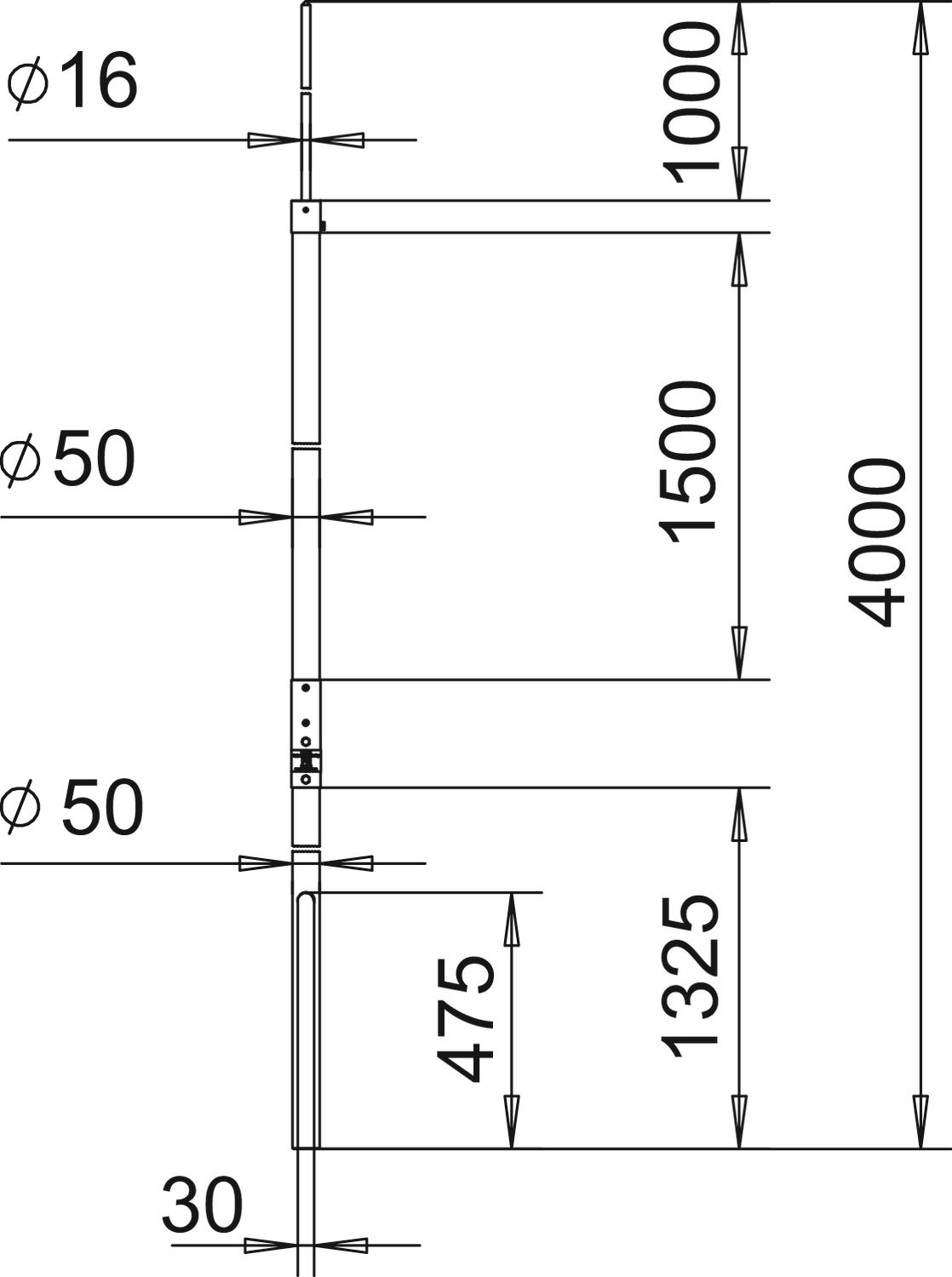

Dimension	4000mm
Dimension A	1325 mm
Dimension B	1000 mm
Dimension d min.	50 mm
Dimension H	1500 mm

Dimension L	4000 mm
High voltage-resistant, insulated version	yes
Length	4000 mm
Material	Fibre-glass-reinforced plastic
Version for	Air-termination rod

All types

All types

Types	Length	Item no.	Quantity	SSU
isFang IN L4	4000 mm	5408854	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Concrete base for FangFix system, min. 16 kg	F-FIX-S16	5403227	piece	1 piece
isCon® connection element	isCon connect	5408022	piece	2 piece

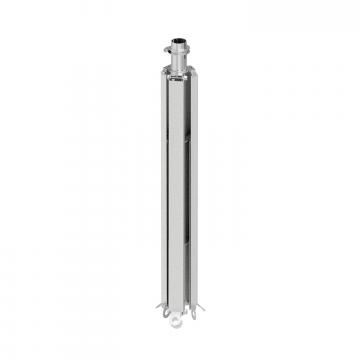

isFang tripod	isFang 3B-100	5408968	piece	1 piece
