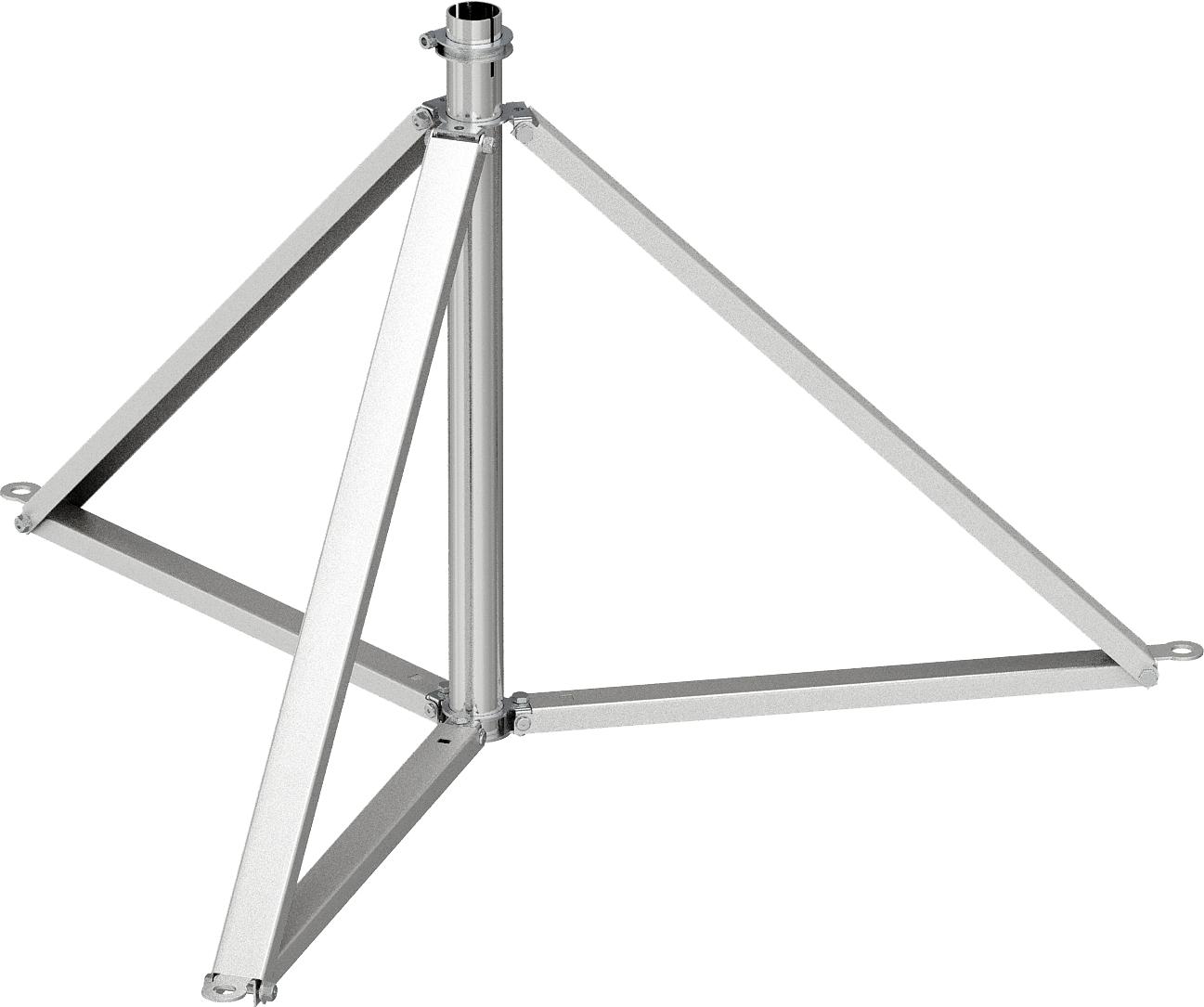

isFang tripod
Item no. 5408968 | EAN 4012195670148
- Product description
-
Product description
• Installation of free-standing air-termination rods as well as insulated air-termination rods with 40 mm diameter
• Roof slope to max. 5 degrees
• Incl. Rd 8–10 crossbar for quick round conductor fastening
• Concrete base as well as threaded rods should be ordered separately
-
- Technical data
-
Technical data
Air-termination rod holder Screwless Diameter 1000 mm Dimension 1,25x1,35m Material Stainless steel Version for Stand Dimensions

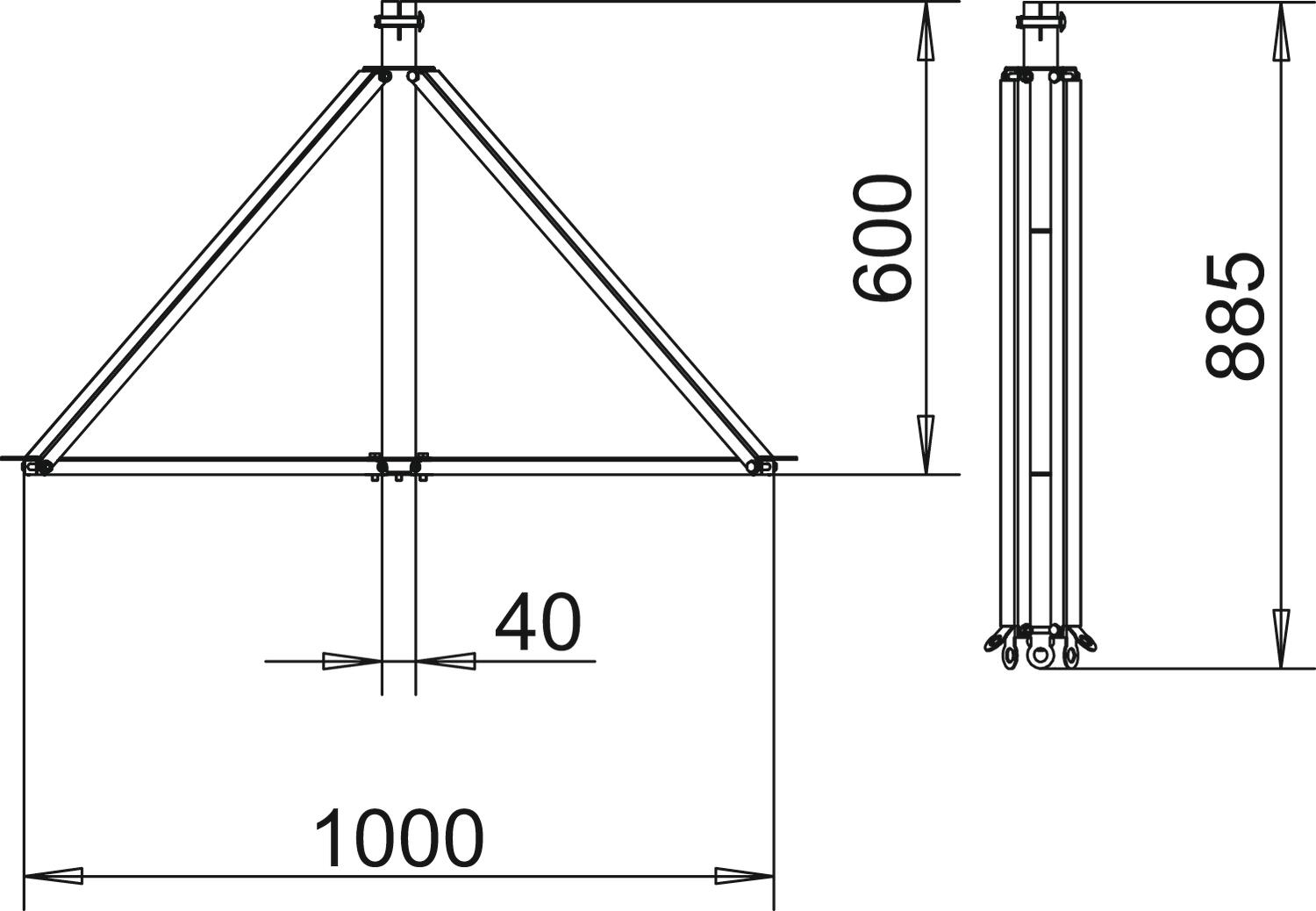

Dimension B 1000 mm Dimension d min. 40 mm Dimension H 885 mm Dimension L 600 mm - All types
