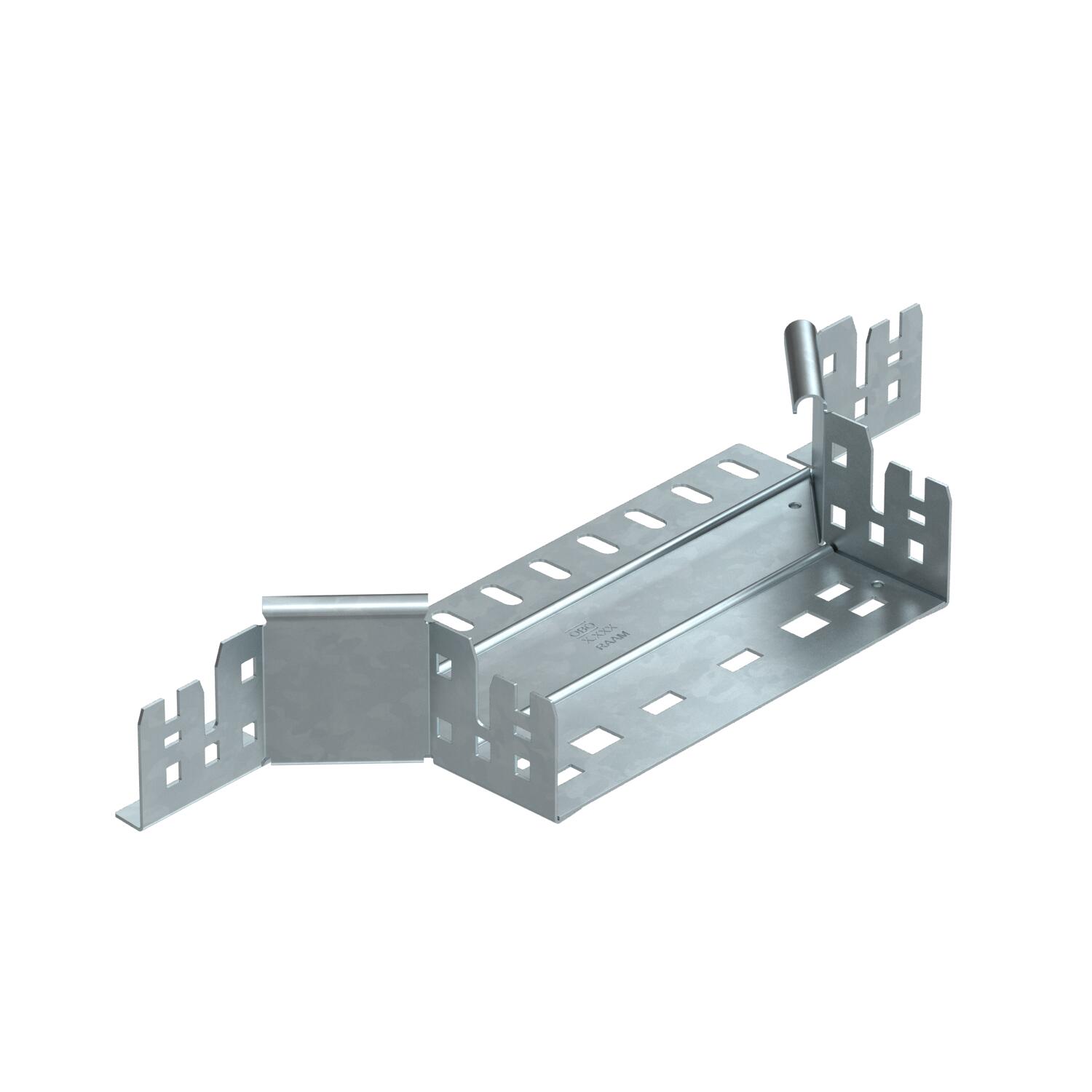

Magic add-on tee 60 FT
Item no. 6041254 | EAN 4012195878742
- Product description
-
Product descriptionAdd-on tee with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 60x200 Dimension B 200 mm Height 2 in Height 60 mm Maintain electrical functions yes Material Steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Click fastening Wide-span version no Width 200 mm Width 8 in - All types
- Downloads
-
Data sheet RAAM 620 FT / 6041254 , 0.18MB , pdfEU declaration of conformity RAAM 620 FT / 6041254 , 0.10MB , pdfREACH Declaration of conformity RAAM 620 FT / 6041254 , 0.12MB , pdfRoHS Declaration of conformity RAAM 620 FT / 6041254 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
