- Product description
-
Product description

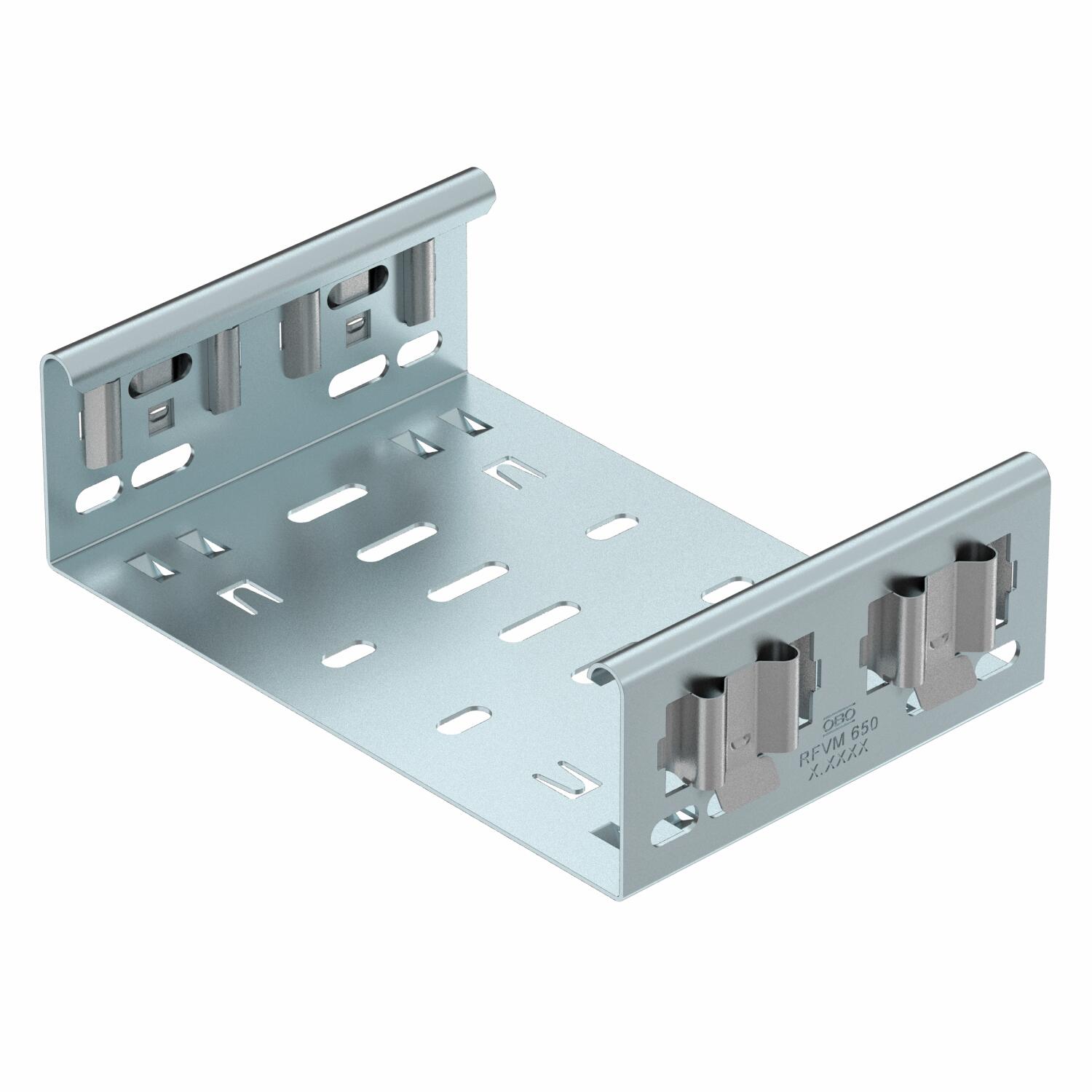

Magic straight connector for direct and screwless joining of Magic fittings with a side height of 60 mm.
The straight connector is equipped with four brackets and can also be used for the direct connection with a cut cable tray with only two brackets mounted to one side. To join a cut cable tray with a fitting, an additional Magic straight connector set is needed.
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screwless connector Dimension 60x100 Maintain electrical functions no Material Steel Plate thickness 1,25 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 60 mm Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip Version for Straight connector Wide-span version no Dimensions

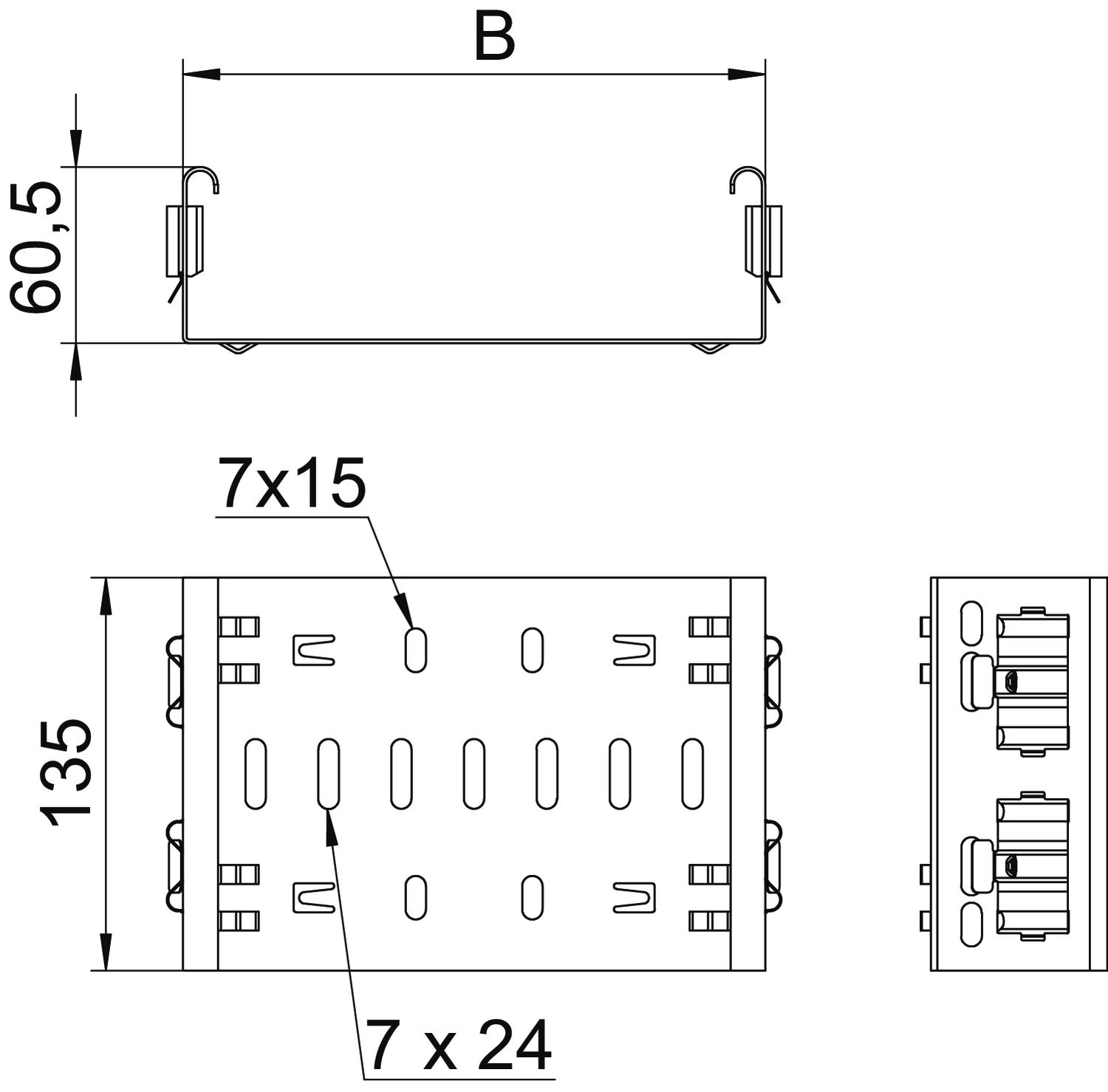

Dimension B 100 mm Height 60 mm Height 2 in Length 135 mm Width 100 mm Width 4 in - All types
-
All types
- Downloads
-
Data sheet FVM 610 DD / 6065710 , 0.26MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity FVM 610 DD / 6065710 , 0.15MB , pdfUK Declaration of Conformity FVM 610 DD / 6065710 , 0.14MB , pdfREACH Declaration of conformity FVM 610 DD / 6065710 , 0.12MB , pdfRoHS Declaration of conformity FVM 610 DD / 6065710 , 0.12MB , pdf
