MS4022 mounting rail, heavy duty, slot 18 mm, FT, perforated 2000 | 40 | 22.5 | 2 | Hot-dip galvanised

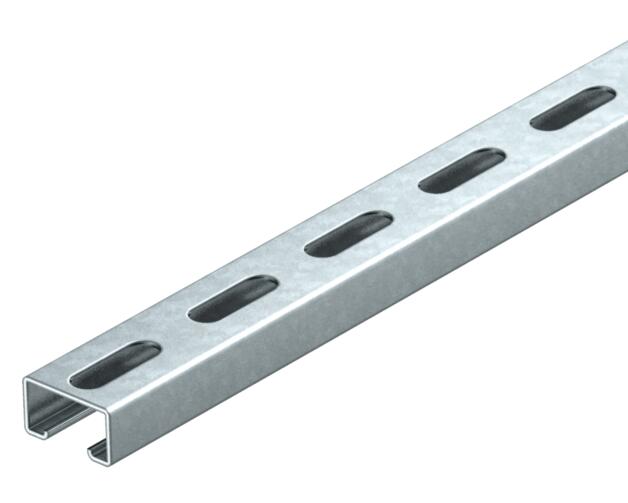

MS4022 mounting rail, heavy duty, slot 18 mm, FT, perforated

Item no. 1121979 | EAN 4012195050230

Item no. / Types	1121979 / MS4022P2000FT

Length	2000 mm

Width	40 mm

Height	22.5 mm

Material thickness	2 mm

Surface	Hot-dip galvanised

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no
Dimension	2000x40x22,5
Dimension L	2000 mm
Drill hole spacing, centre	50 mm
Height	22,5 mm
Length	2000 mm
Maintain electrical functions	yes
Material	Steel
Material thickness	2 mm
Profile shape	C profile
Slot width	18 mm

Static value A	1,74 cm²
Static value ly	1,18 cm
Static value lz	4,45 cm
Static value Wy	1,05 cm²
Static value Wz	2,23 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
Width	40 mm
With perforation	yes
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS4022P2000FT	2000 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1121979	m	2 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Clamp clip, single, FT plastic pressure trough	2056U 12 FT	1175122	piece	100 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
Clamp clip, single, FT plastic pressure trough	2056U 28 FT	1175289	piece	100 piece
