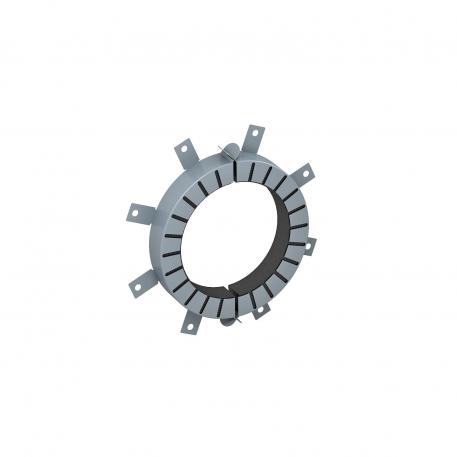

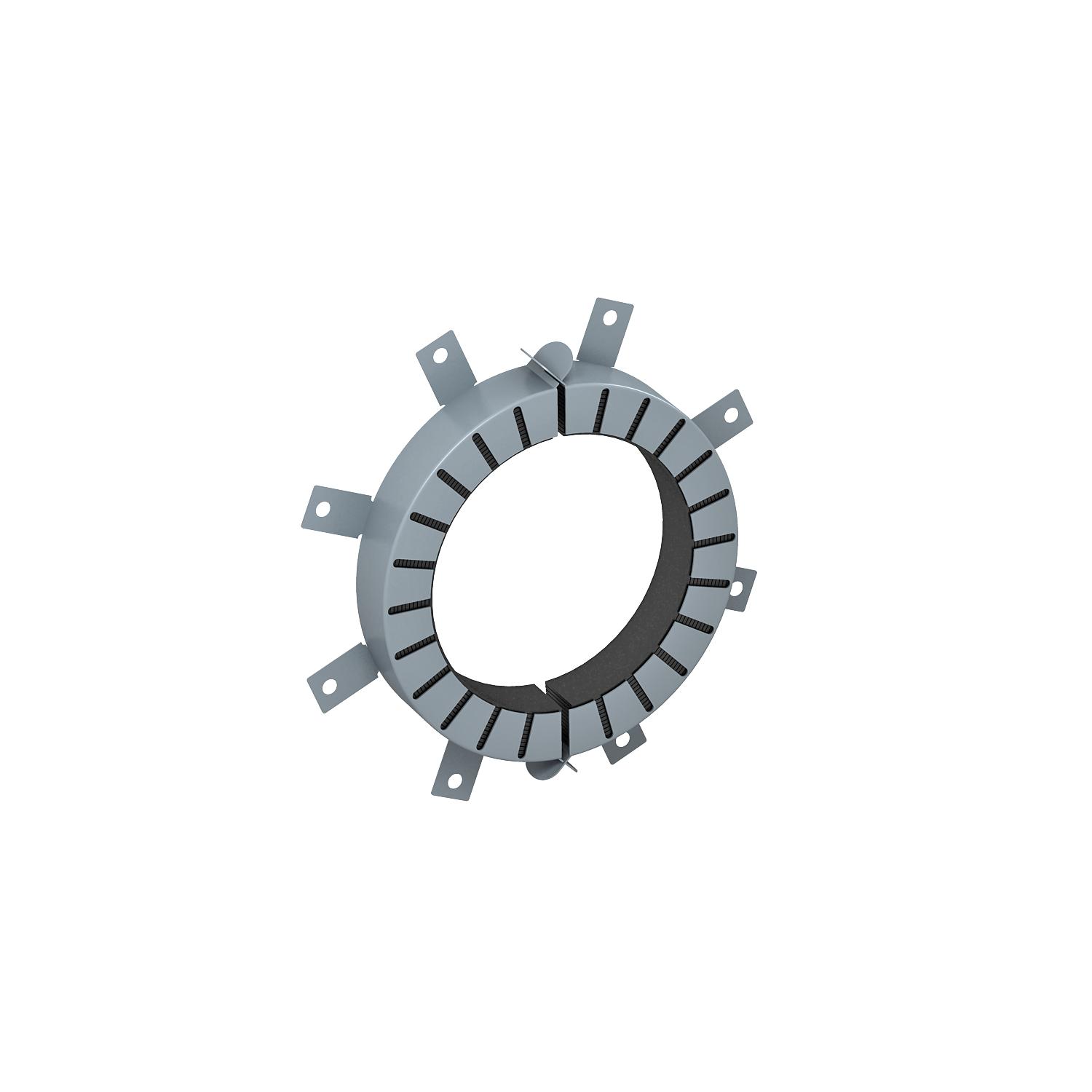

Pipe sleeve with 8 fastening straps
Item no. 7202212 | EAN 4012196086917
- Product description
-
Product descriptionPipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.
-
- Technical data
-
Technical data

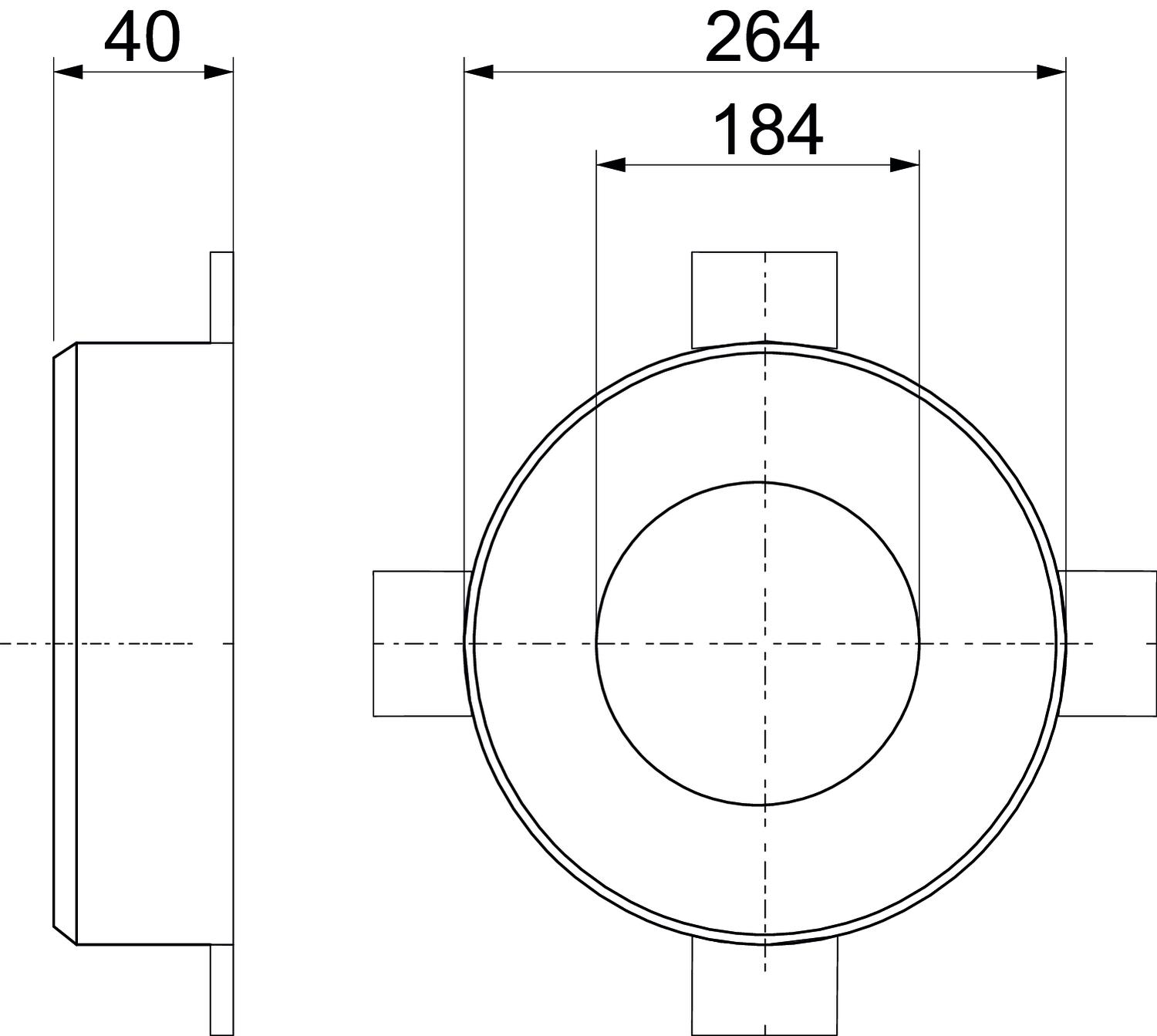

Accessories required yes Colour Grey Dimension Ø180mm Dimension d 184 mm Dimension d min. 264 mm Dimension h 40 mm For pipe diameter, max. 182 mm For pipe diameter, min. 180 mm Height 40 mm Length 264 mm Material Intumescent material Width 264 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Insulation layer creator in a cartridge
DSX-K 7202300 1 piece - Downloads
-
