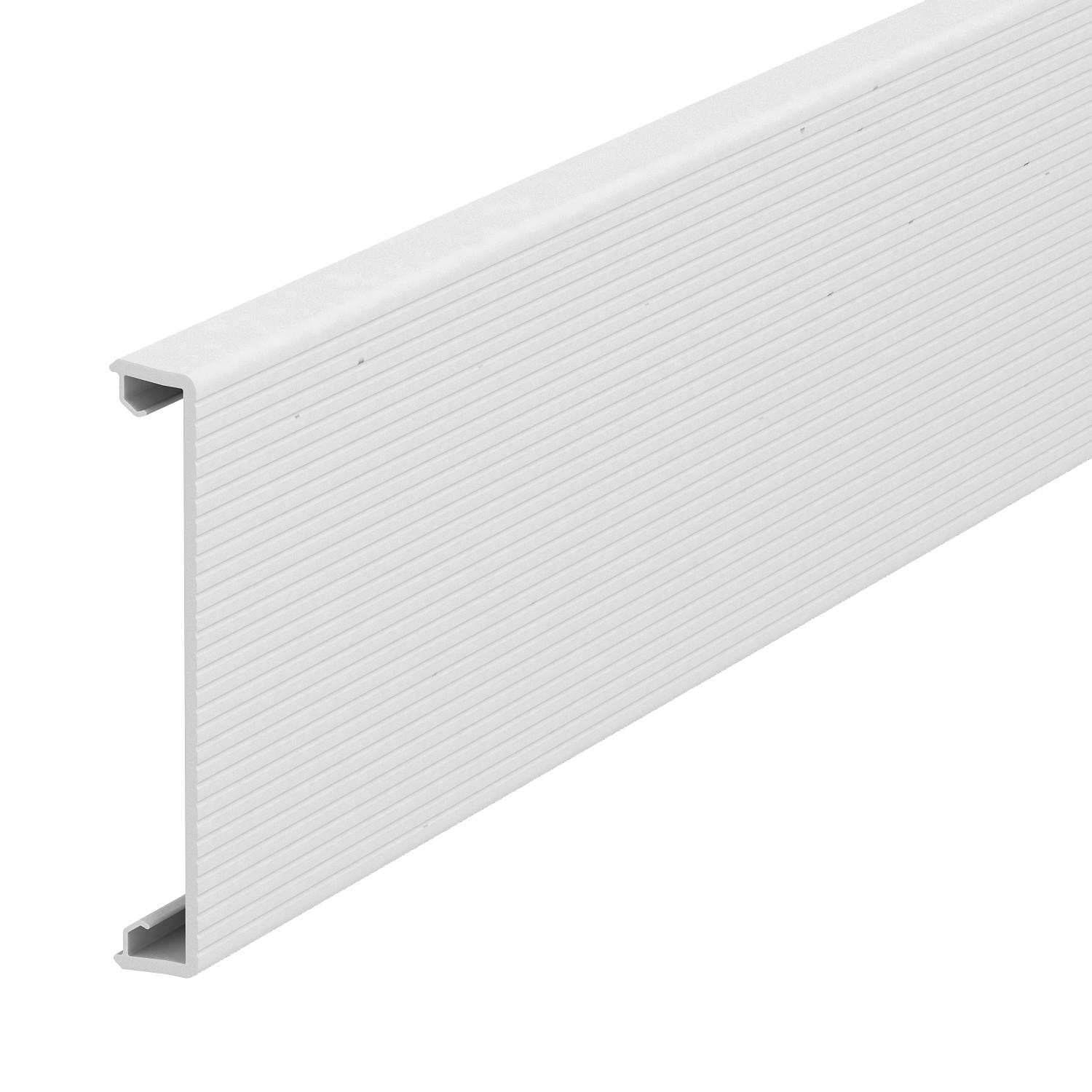

Plastic trunking cover, fluted
Item no. 6278780 | EAN 4012195666530
- Product description
-

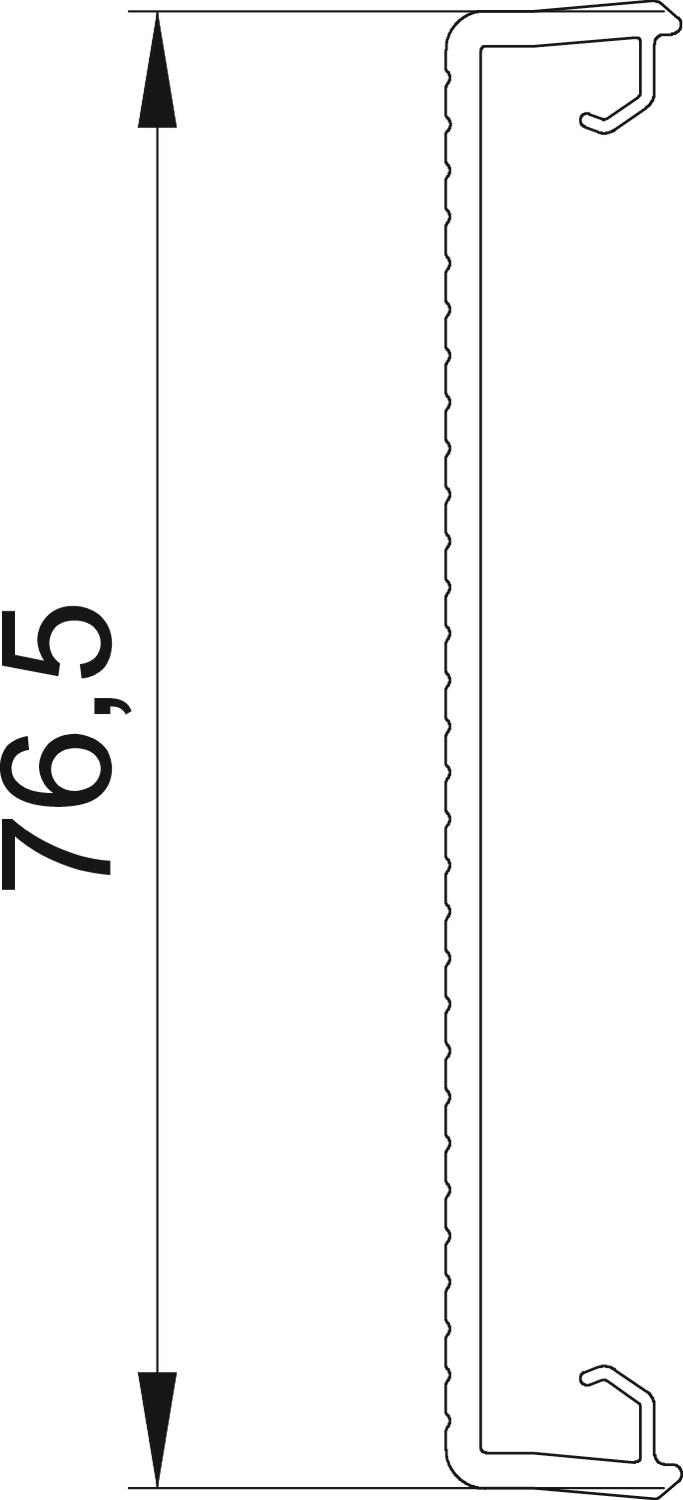

Product descriptionFluted trunking cover, for closing device installation trunking with 76.5 mm system opening.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Pure white; RAL 9010 Cover mounting type Internal Dimension 80x2000mm Halogen-free no Height 12 mm Length 2000 mm Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Protective film no Version for Profiled Width 76,5 mm - All types
- Downloads
-
Data sheet GK-OTKRW / 6278780 , 0.21MB , pdfEU declaration of conformity GK-OTKRW / 6278780 , 0.13MB , pdfUK Declaration of Conformity GK-OTKRW / 6278780 , 0.14MB , pdfREACH Declaration of conformity GK-OTKRW / 6278780 , 0.12MB , pdfRoHS Declaration of conformity GK-OTKRW / 6278780 , 0.12MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
