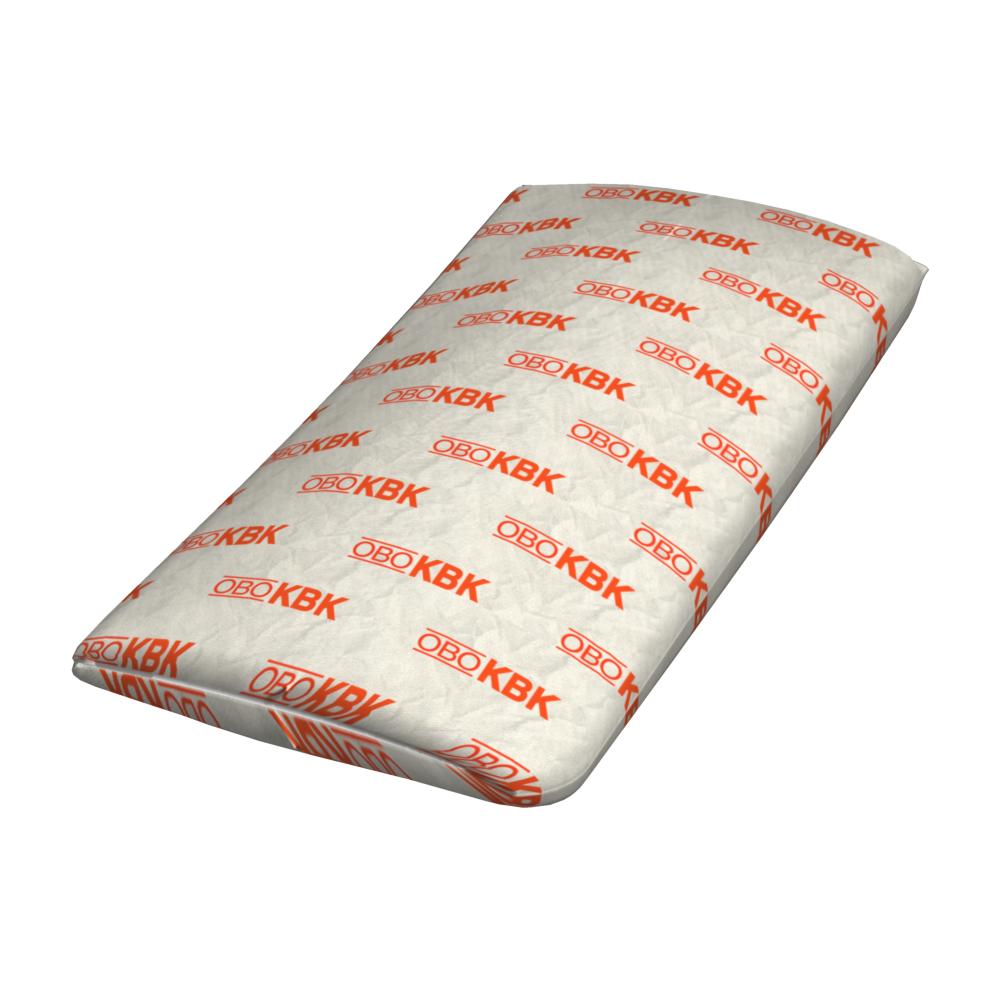

PYROBAG® fire protection cushion

Item no. 7202741 | EAN 4012196460755

Product description

Product description

Cable fire protection cushions made of dense, closely knit and mechanically solid glass mesh with a special filling. Free from mineral fibres, weatherproof and water-resistant. For interior application.

Can be stored for an unlimited period of time in dry, frost-free rooms.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories required yes
Colour Grey
Contents 0,63 kg

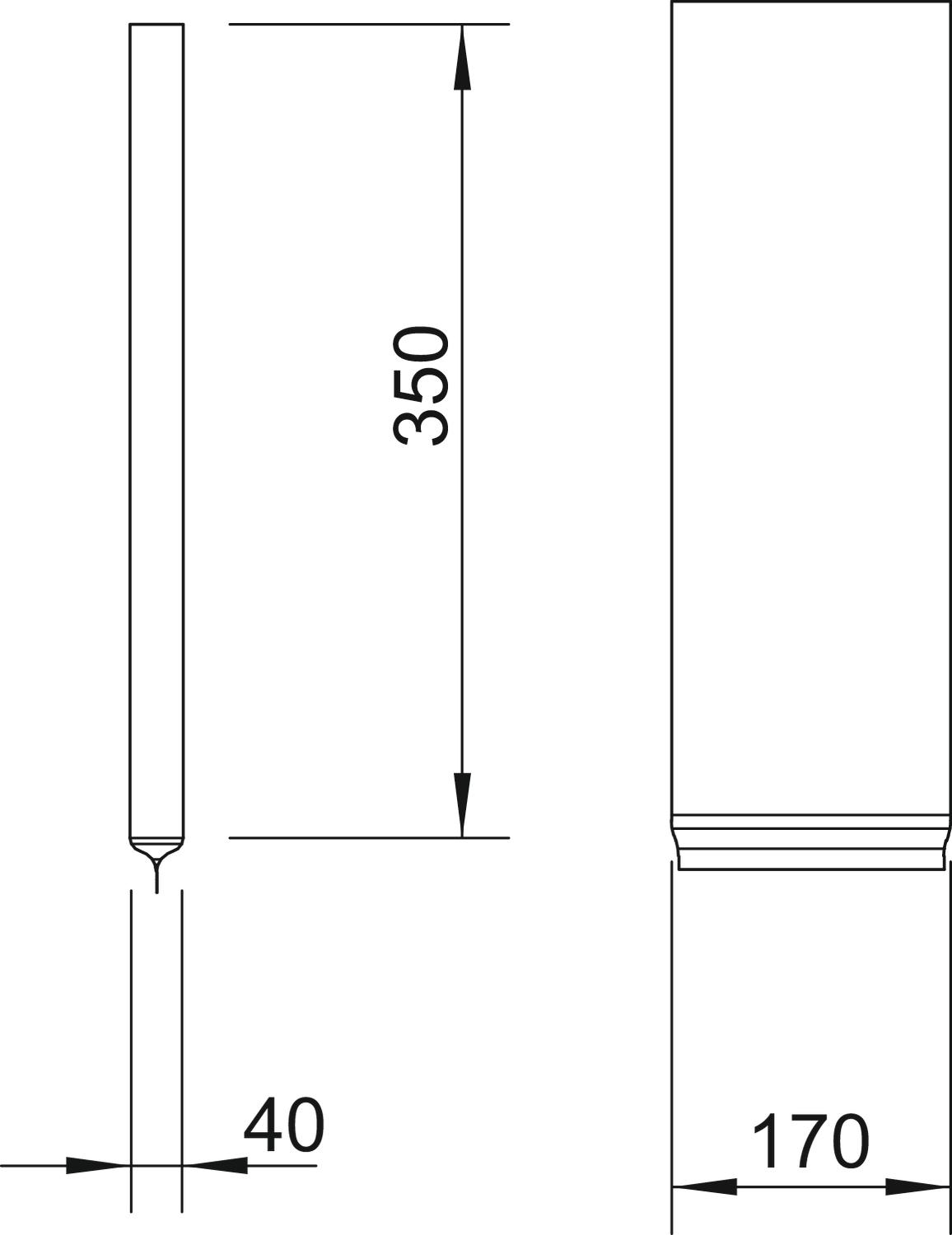

Dimension 350x170x40mm
Dimension B 170 mm
Dimension d min. 40 mm
Fire protection version Cushion insulation
Height 40 mm
Length 350 mm
Material Glass mesh with special fire protection filling
Shape Rectangular
Width 170 mm
All types

All types

Types Dimension d min. Contents Item no. Quantity SSU
KBK-1 10 mm 0.18 kg 7202709
5 piece
KBK-2 23 mm 0.33 kg 7202725
5 piece
KBK-3 40 mm 0.63 kg 7202741
5 piece
Downloads

Download

Declaration of conformity KBK-3 / 7202741 , 0.11MB , pdf
Download
REACH Declaration of conformity KBK-3 / 7202741 , 0.12MB , pdf
RoHS Declaration of conformity KBK-3 / 7202741 , 0.12MB , pdf

Download
Download

KBK-3 / 7202741
