Quick pipe, light grey
Item no. 2153939 | EAN 4012195025153
- Product description
-
Product description

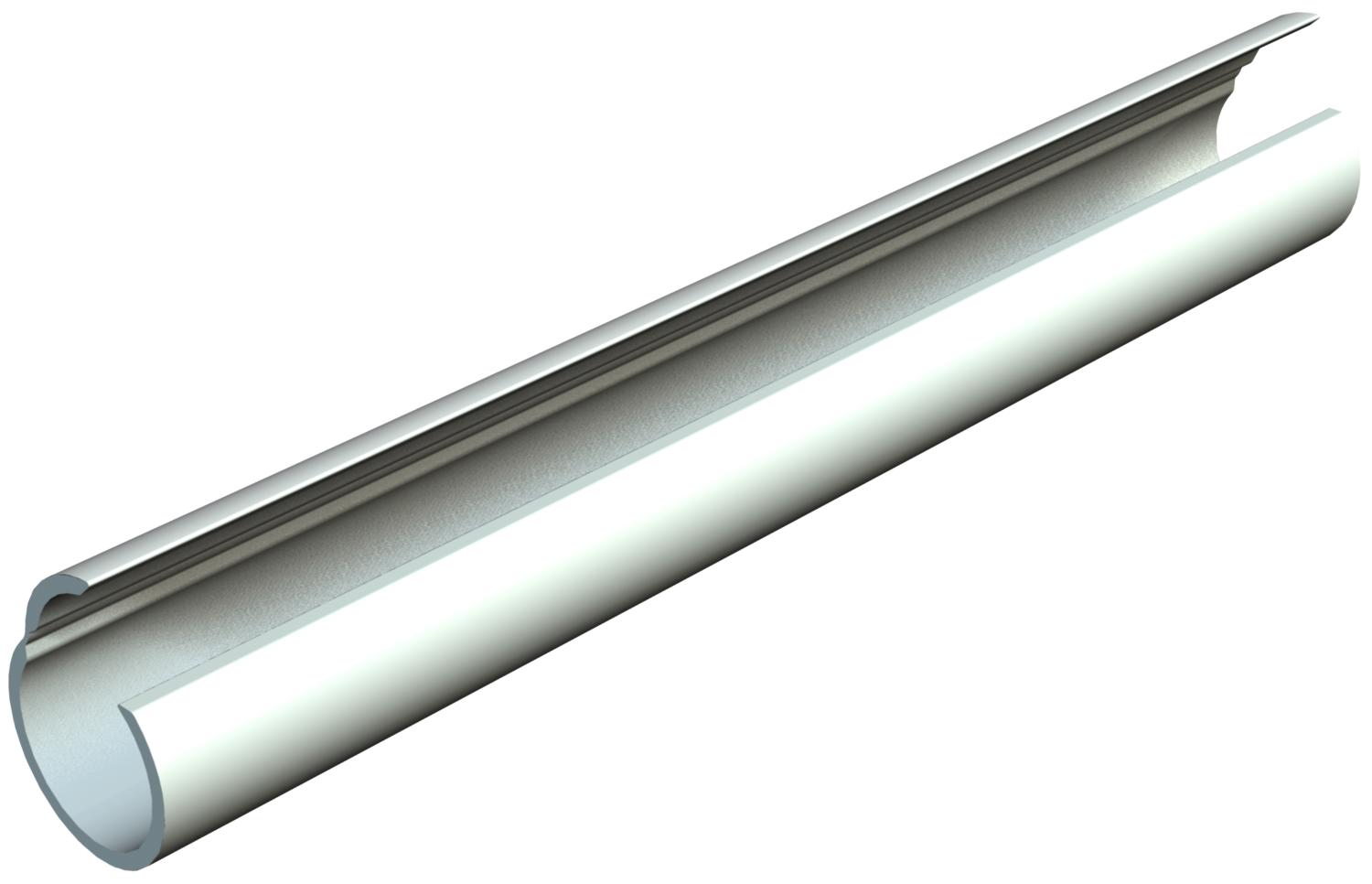

Open plastic Quick pipe pipe for surface-mounted routing of cables in interiors and protected outdoor areas. Mounting on wall and ceiling with Quick clip, starQuick clip and Multi-Quick clip. Toolless closing and opening through turning in the clip. Can be used in a temperature range of –25 to +60 °C.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Concealed no Concrete installation no Dimension M32 Flame-resistant version no Halogen-free no Installation in the earth no Installation on wood yes Installation outdoors no Machines and system installation yes Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Size M32 Surface-mounted yes Underfloor installation (screed) no With sleeve no Dimensions
Dimension C 17 mm Dimension D 32 mm Dimension m (mm) 28,6 Dimension t 1,7 mm Length 2000 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Quick pipe connecting sleeve, light grey
3000 MMS M32 LGR 2154087 10 piece Mounting accessories
Products Types Item no. Quantity SSU
Pipe end cap, splittable, metric, light grey
129 TB M32 2047855 50 piece
Quick clip, light grey
2955 M32 2149022 50 piece - Downloads
-
Data sheet 2953 M32 LGR / 2153939 , 0.27MB , pdfBrochure Quick Pipe , 1.41MB , pdfDeclaration of conformity 2953 M32 LGR / 2153939 , 0.05MB , pdfREACH Declaration of conformity 2953 M32 LGR / 2153939 , 0.12MB , pdfRoHS Declaration of conformity 2953 M32 LGR / 2153939 , 0.12MB , pdf
