Quick pipe, pure white
Item no. 2153960 | EAN 4012195538578
- Product description
-
Product description

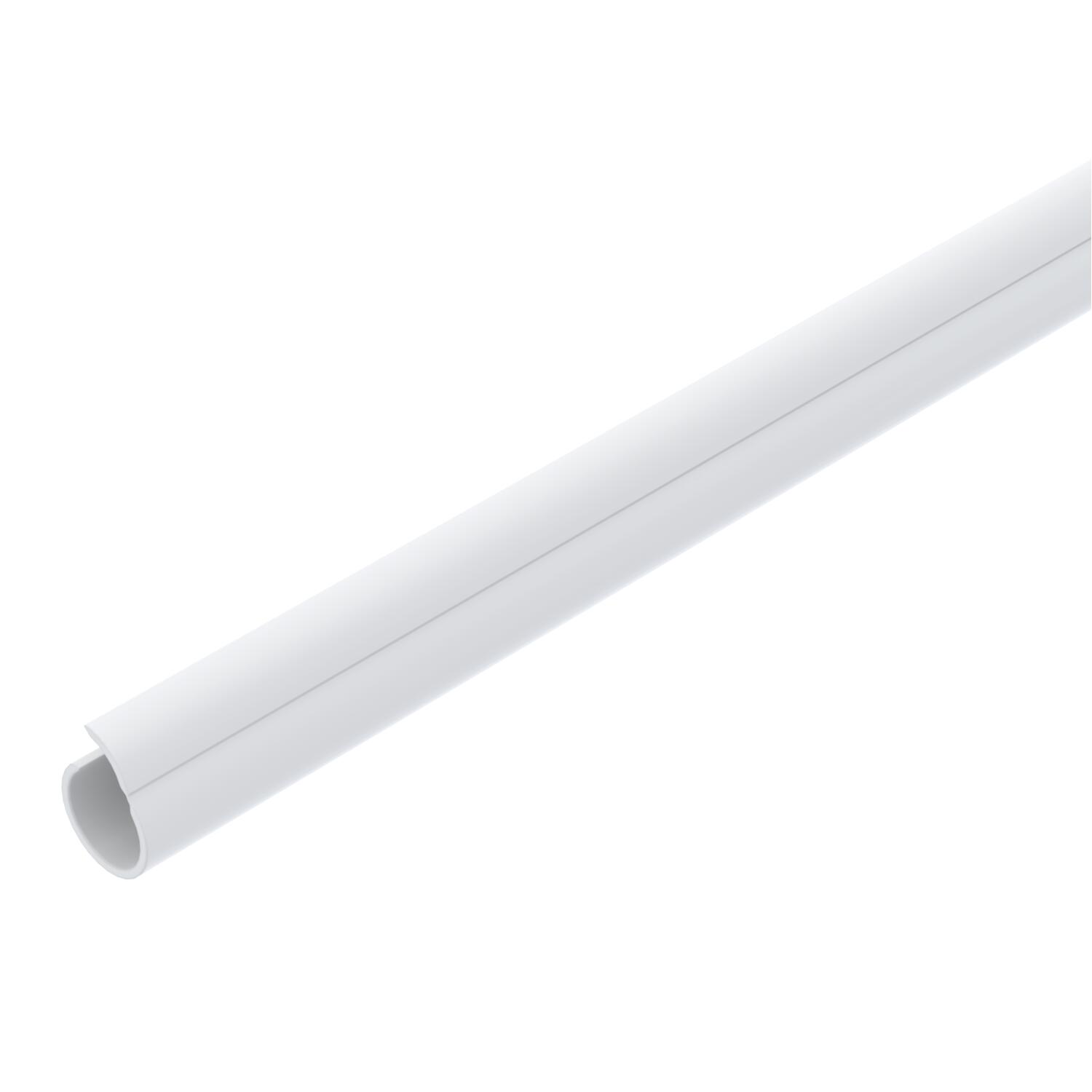

Open plastic Quick pipe pipe for surface-mounted routing of cables in interiors and protected outdoor areas. Mounting on wall and ceiling with Quick clip, starQuick clip and Multi-Quick clip. Toolless closing and opening through turning in the clip. Can be used in a temperature range of –25 to +60 °C.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Concealed no Concrete installation no Dimension M16 Dimension C 8.2 mm Dimension D 15,6 mm Dimension m (mm) 13,2 Dimension t 1,2 mm Flame-resistant version no Halogen-free no Installation in the earth no Installation on wood yes Installation outdoors no Length 2000 mm Machines and system installation yes Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Size M16 Surface-mounted yes Underfloor installation (screed) no With sleeve no - All types
-
System accessories
Products Types Item no. Quantity SSU
Quick pipe connecting sleeve, pure white
3000 MMS M16 RW 2154091 10 piece
90° Quick pipe bend, pure white
3000 BMS M16 RW 2154062 10 piece Mounting accessories
Products Types Item no. Quantity SSU
Pipe end cap, splittable, metric, light grey
129 TB M16 2047812 50 piece
Quick clip, light grey
2955 M16 2149004 100 piece - Downloads
-
Data sheet 2953 M16 RW / 2153960 , 0.20MB , pdfBrochure Quick Pipe , 1.41MB , pdfREACH Declaration of conformity 2953 M16 RW / 2153960 , 0.12MB , pdfRoHS Declaration of conformity 2953 M16 RW / 2153960 , 0.12MB , pdf
