Quick pipe T piece, light grey 69 | M20
morepic-1 morepic-2

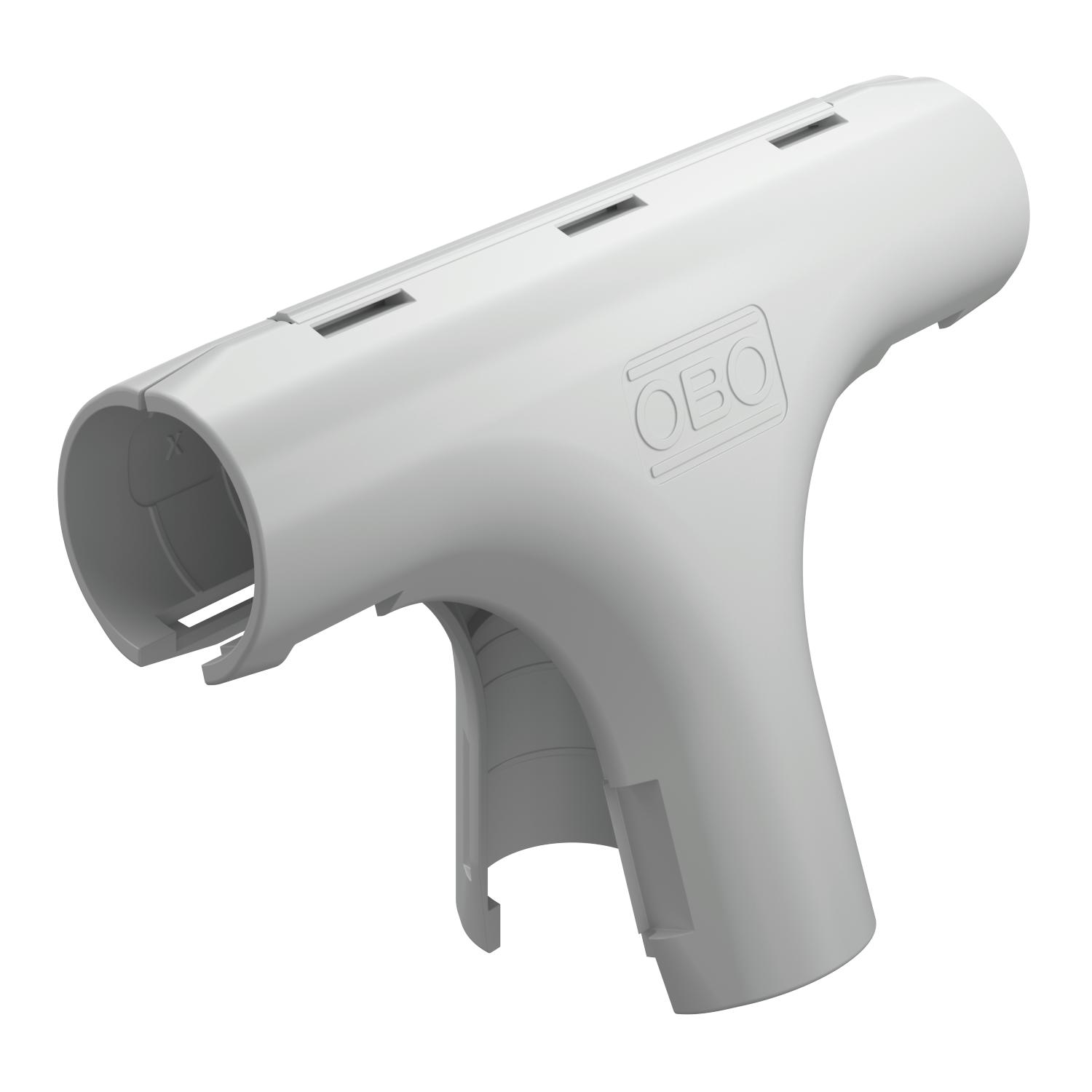

Quick pipe T piece, light grey

Item no. 2153841 | EAN 4012196868414

2153841 / 3000 TMS M20 LGR
69 mm
M20
Product description
Product description
Fitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 44
  • Thread metric
Technical data

Technical data

Brushed surface no
Colour Light grey; RAL 7035

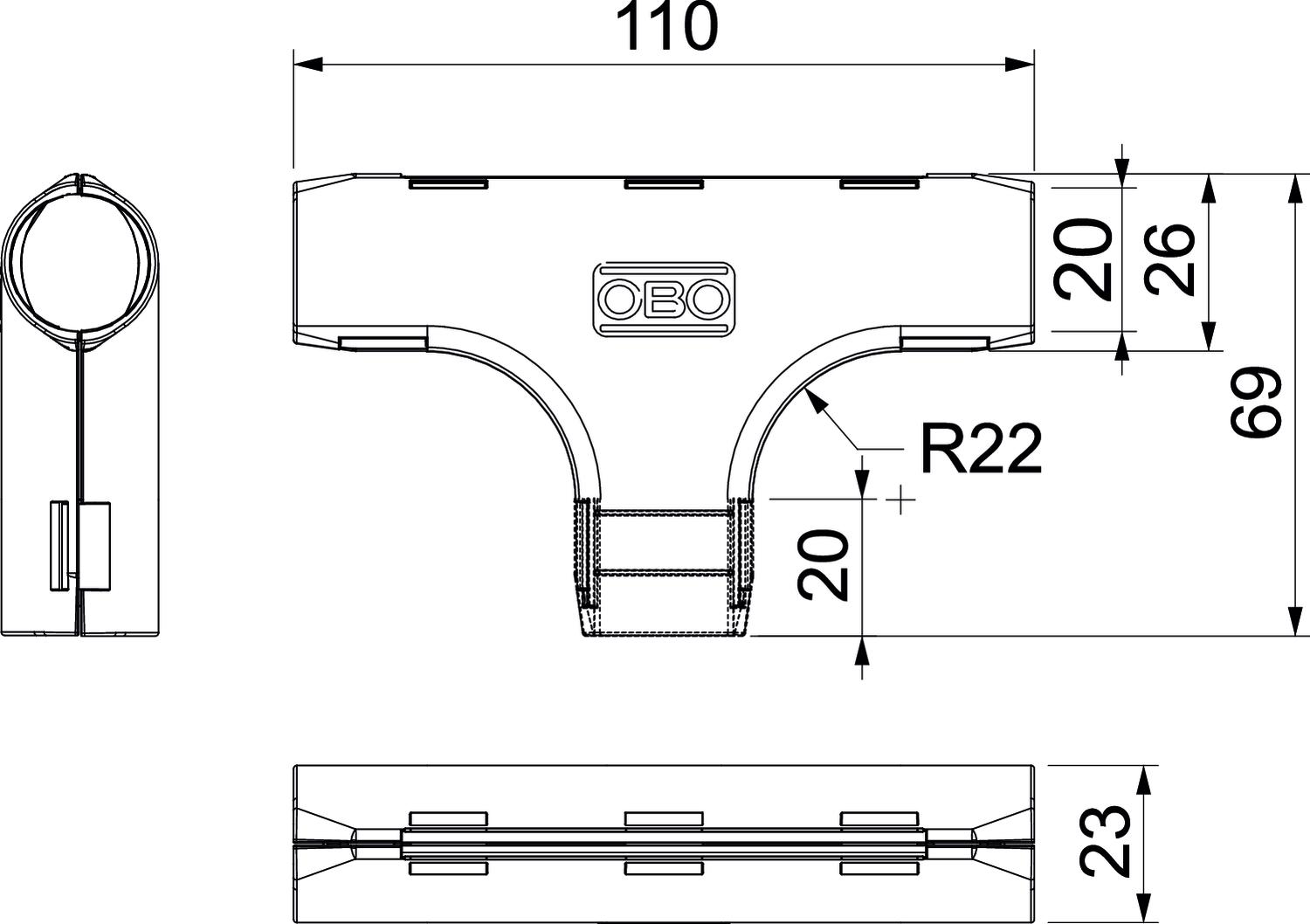

Dimension M20
Dimension B 26 mm
Dimension B2 110 mm
Dimension d 20 mm
Dimension L 69 mm
Dimension L1 20 mm
Dimension R 22 mm
Halogen-free yes
Material Polypropylene
Permitted temperature range, max. 60 °C
Polished surface no
Shape T piece
Size M20
Version for Connector
With sleeve no
All types

All types

Types Dimension L Size Item no. Quantity SSU
3000 TMS M20 LGR 69 mm M20 2153841
5 piece
Downloads

Download

Download
Download

REACH Declaration of conformity 3000 TMS M20 LGR / 2153841 , 0.12MB , pdf
Download
RoHS Declaration of conformity 3000 TMS M20 LGR / 2153841 , 0.13MB , pdf
