Round conductor, aluminium 8 | 20 | 150 | 50 | Aluminium

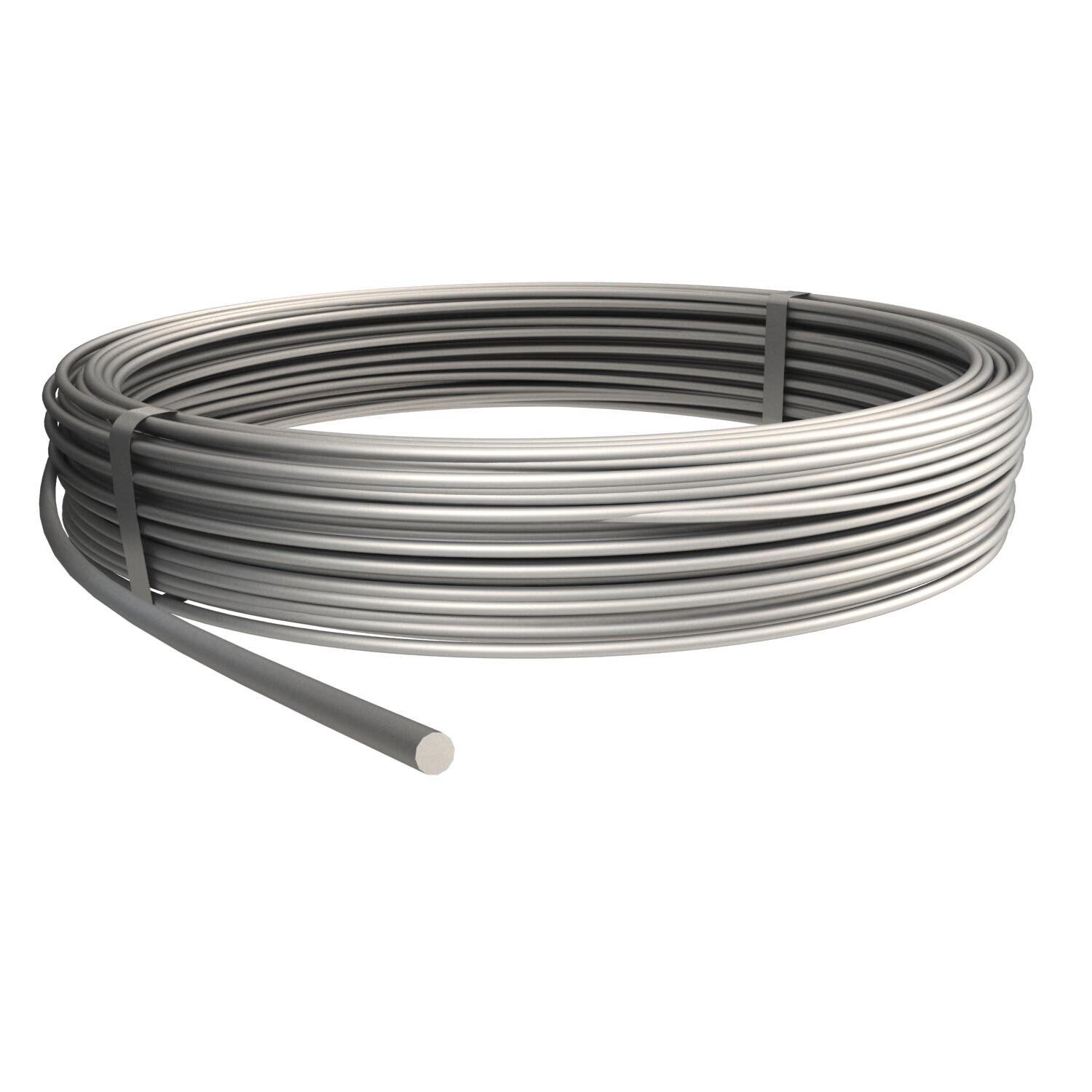

Round conductor, aluminium

Item no. 5021294 | EAN 4012195901273

Item no. / Types

Diameter	8 mm

Normal ring (ca. kg)

Nomal ring (approx. m)

Cross-section	50 mm²

Material	Aluminium

Product description

Product description

• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 8 ALU: Semi-hard (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 8 ALU-T: Can be subjected to torsion (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 10 ALU: Pure aluminium (E-Al corresponds to DIN 48801)
• AL and ALMgSi may not be routed directly on, in or under plaster, mortar or concrete, nor routed in the earth

Technical data

Technical data

Cross-section	50 mm²
Diameter	8 mm
Dimension	8mm
Dimension D	8 mm
High voltage-resistant, insulated version	no
Length tolerance ±	5 %

Material	Aluminium
Material jacket	Without
Material property	Soft
Nomal ring (approx. m)	150
Normal ring (ca. kg)	20
Number of individual wires	1

All types

All types

Types	Diameter	Normal ring (ca. kg)	Nomal ring (approx. m)	Cross-section	Material	Item no.	Quantity	SSU
RD 8-ALU-T	8 mm	20	150	50 mm²	Aluminium	5021294	m	150 m
RD 8-ALU-T 75	8 mm	10	75	50 mm²	Aluminium	5021296	m	75 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
165 MBG... roof cable holder for flat roofs, black, with concrete	165 MBG-8-10	5218700	piece	12 piece
Folding and construction clamp	RSF 177 20 VA M8	5317512	piece	50 piece
