- Product description
-

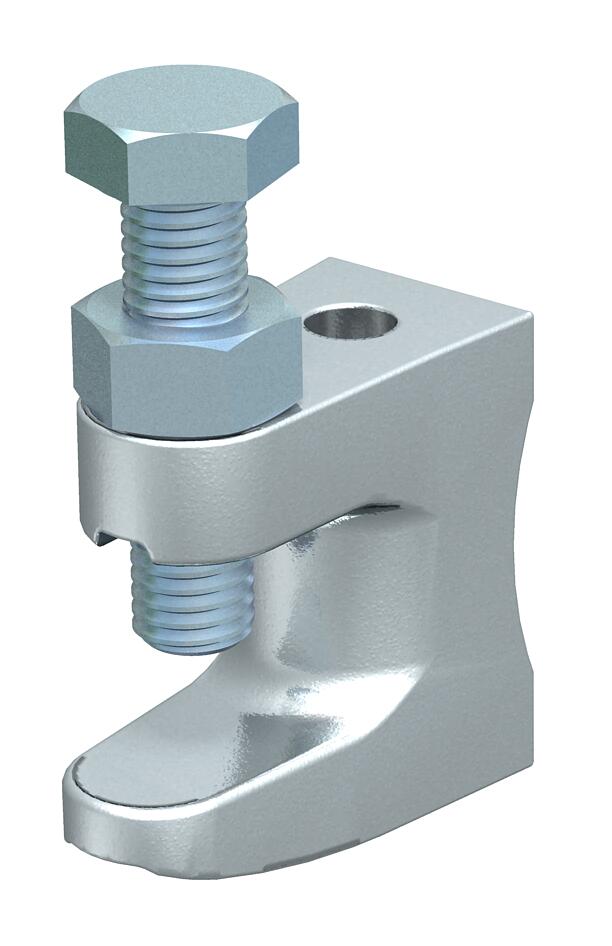

Product description
With thread.
Max. tightening torque: 21 Nm
-
- Technical data
-
Technical data
Breaking load 3,5 kN Connection type/component Thread Dimension 0-26mm Fastening type Bolts Flange thickness F max. 26 mm Hinge, adjustable no Hinged no Material Cast iron Max. Tightening torque 21 Nm Suitable for metric threaded rod 12 Thread metric 12 Dimensions

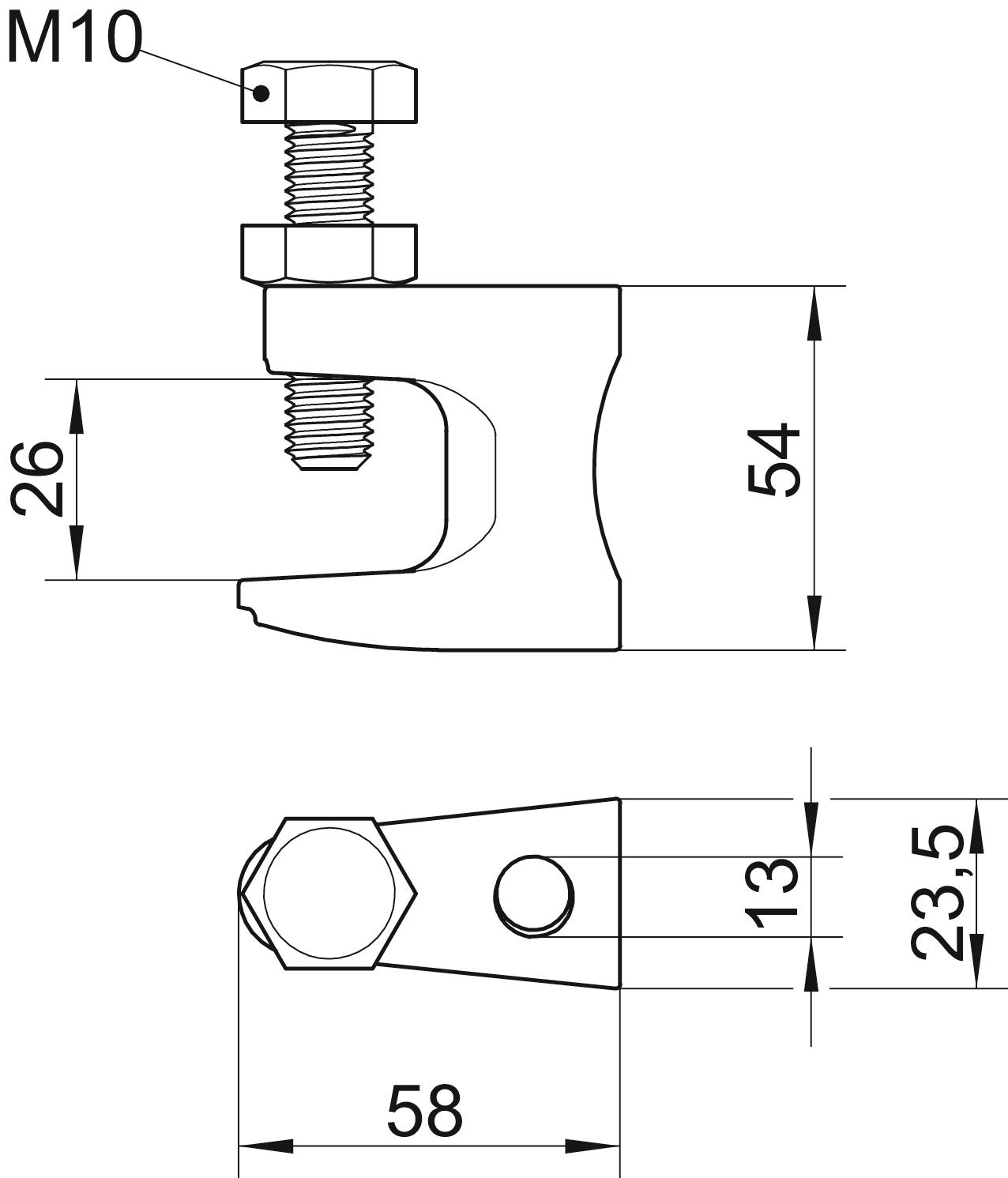

Dimension B 23,5 mm Dimension F 26 mm Dimension G (mm) M10 Dimension H 54 mm Dimension L 58 mm Height 54 mm Length 58 mm Width 23,5 mm - All types
- Downloads
-
Data sheet FL3-G M12 TG / 1488090 , 0.19MB , pdfDeclaration of conformity FL3-G M12 TG / 1488090 , 0.06MB , pdfREACH Declaration of conformity FL3-G M12 TG / 1488090 , 0.12MB , pdfRoHS Declaration of conformity FL3-G M12 TG / 1488090 , 0.12MB , pdf
