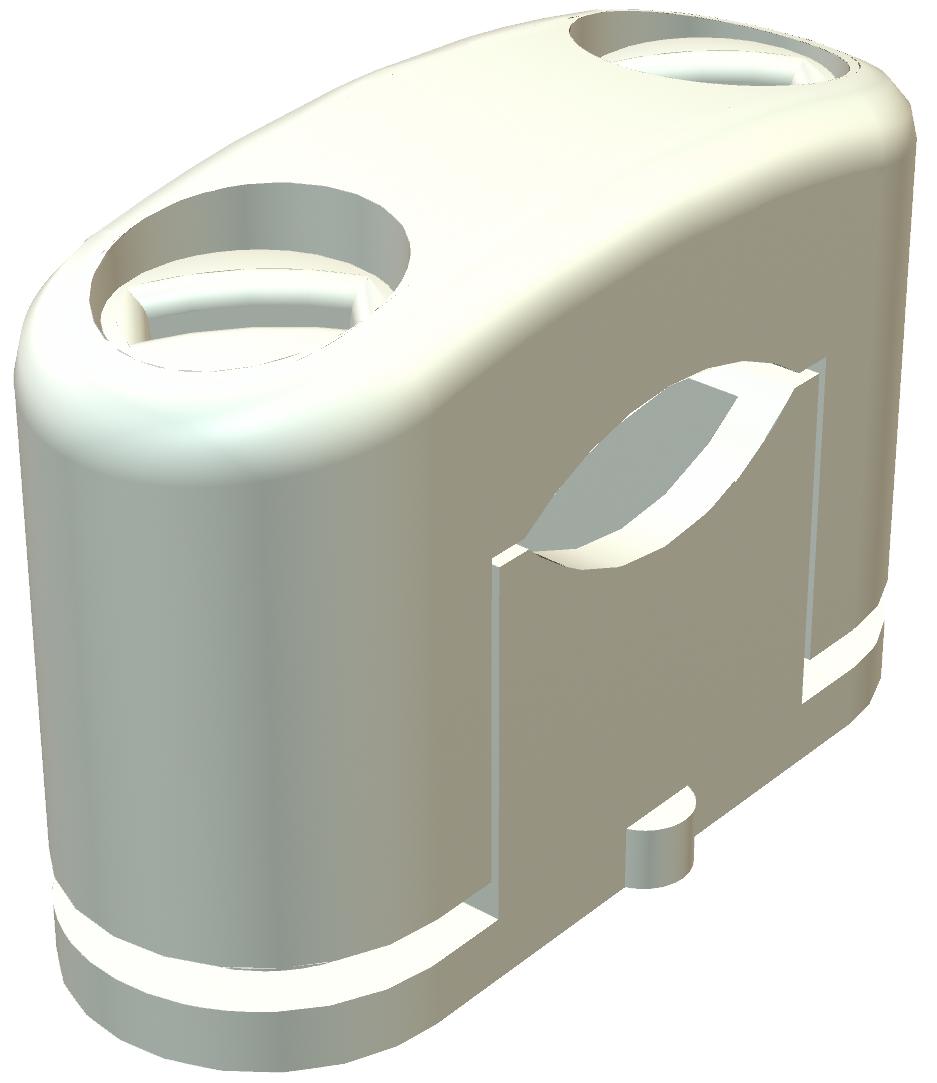

SOM clip, single
Item no. 2124254 | EAN 4012195196693
- Product description
-
Product description
With plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.
-
- Technical data
-
Technical data

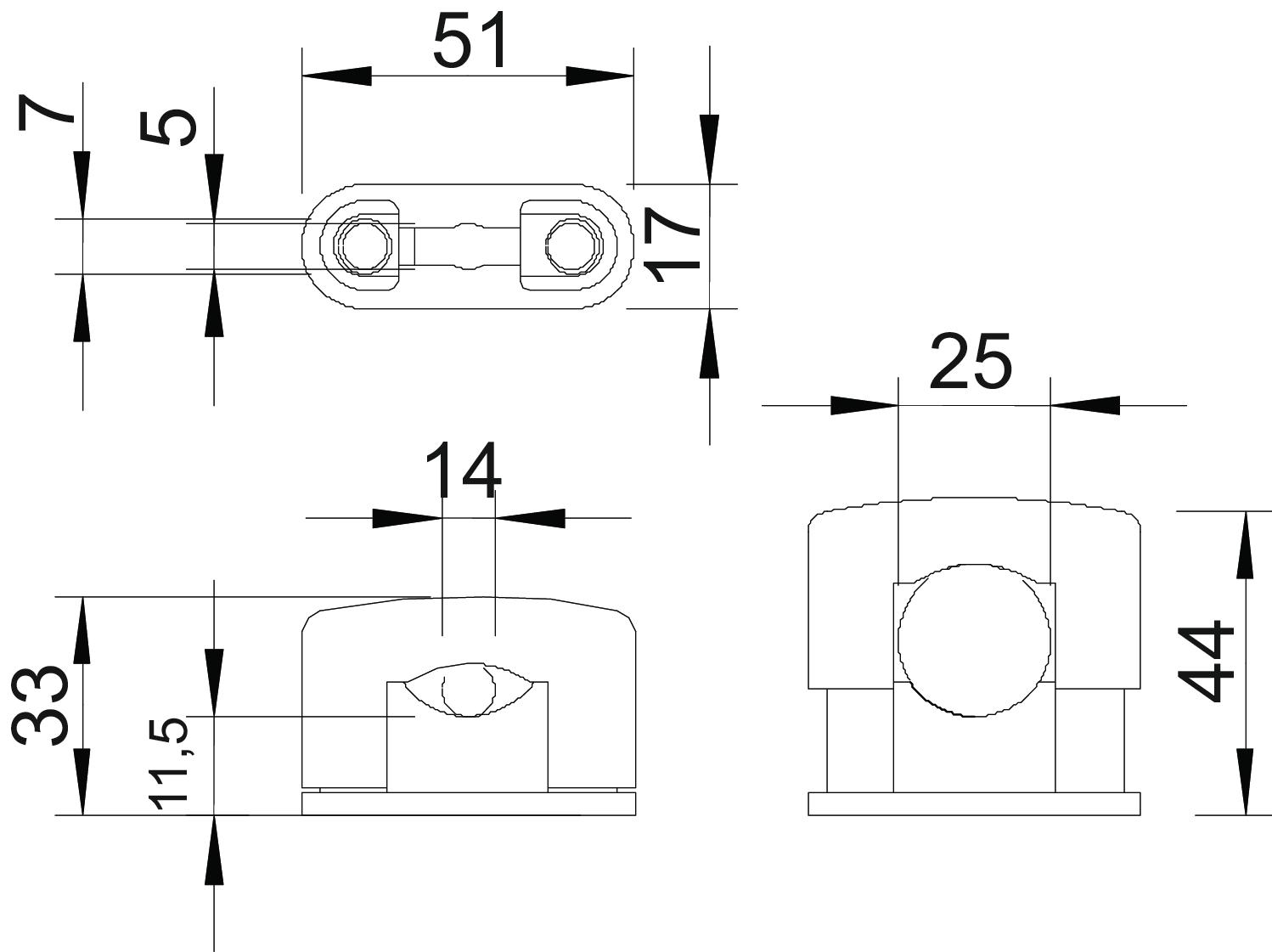

Bolt M8 x 23 Clamping range D, max. 25 mm Clamping range D, min. 15 mm Colour Light grey; RAL 7035 Dimension 15-25mm Dimension b 17 mm Dimension b1 5 mm Dimension b2 7 mm Dimension d max. 25 mm Dimension d min. 14 mm Dimension H1 11,5 mm Dimension H2 33 mm Dimension H3 44 mm Dimension L 51 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 3081 LGR / 2124254 , 0.21MB , pdfDeclaration of conformity 3081 LGR / 2124254 , 0.06MB , pdfREACH Declaration of conformity 3081 LGR / 2124254 , 0.12MB , pdfRoHS Declaration of conformity 3081 LGR / 2124254 , 0.12MB , pdf
