Spacer clip 733 A2 1.5 | | 53 | 63 | Stainless steel |

Spacer clip 733 A2

Item no. 1362996 | EAN 4012196608966

Item no. / Types

Material thickness	1.5 mm

Clamping range D, min.

Clamping range D, max.

Material	Stainless steel

Product description

Product description

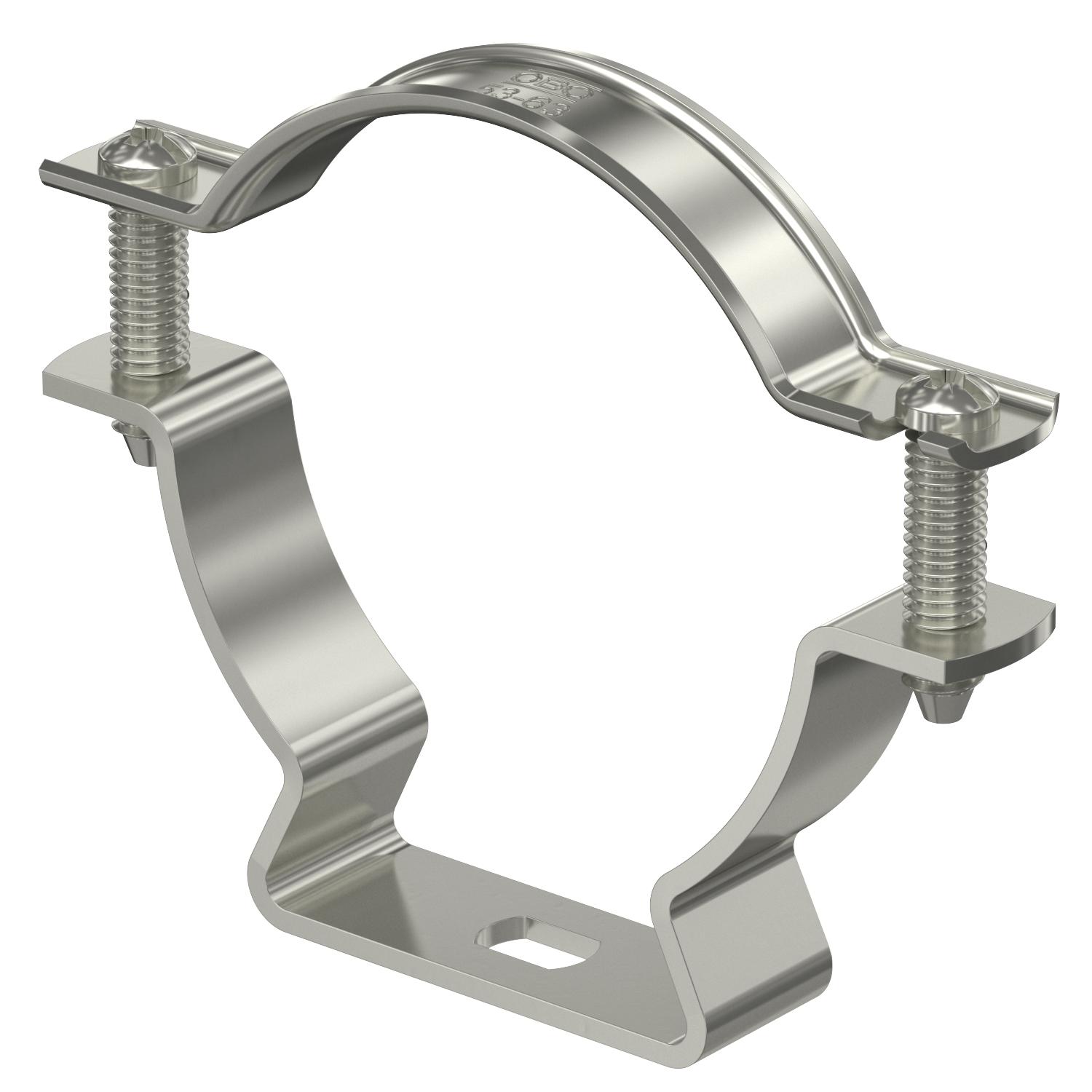

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.

Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.

Technical data

Technical data

Clamping range D, max.	63 mm
Clamping range D, min.	53 mm

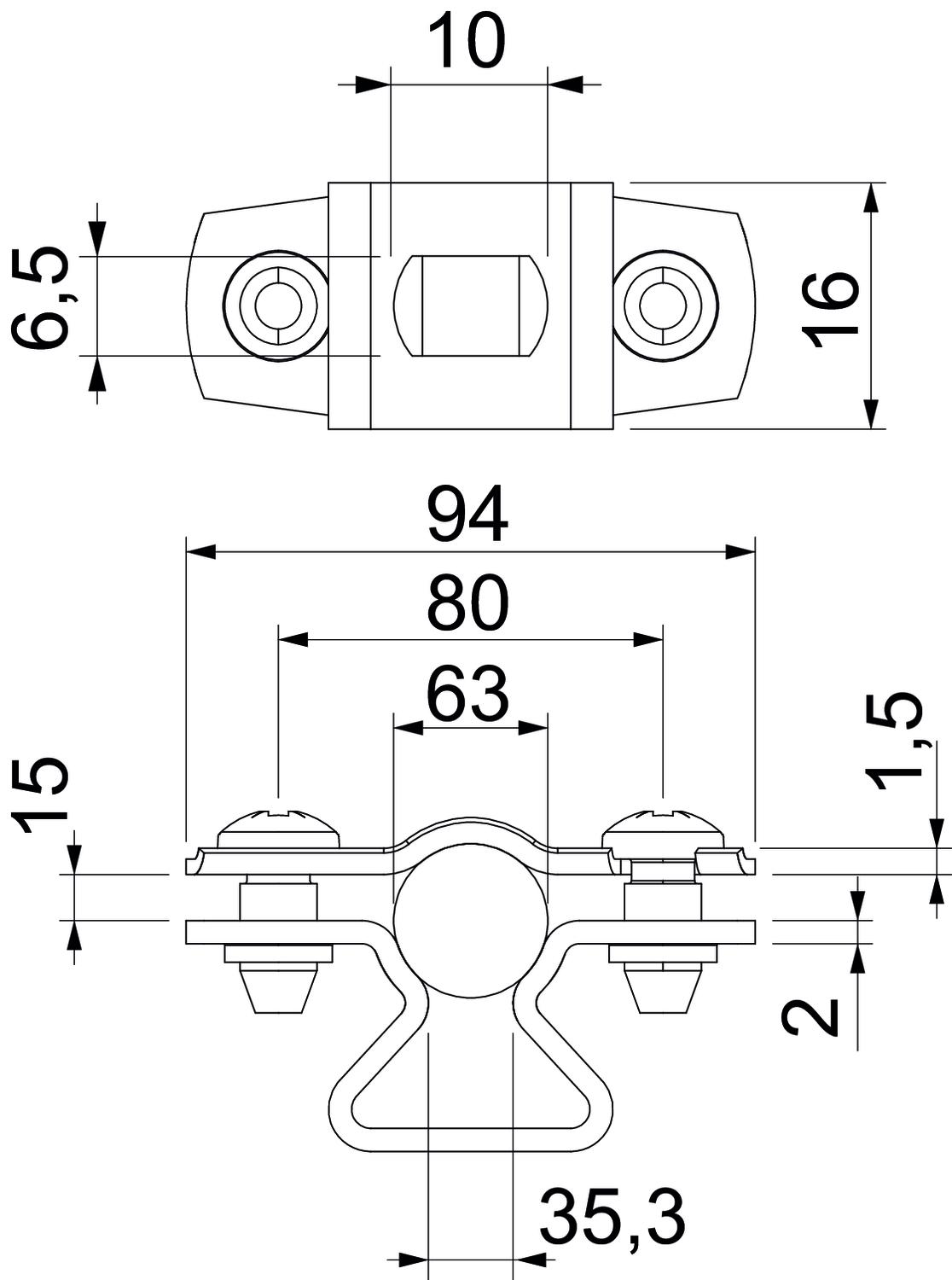

Dimension	53-63mm
Dimension A	94 mm
Dimension B	80 mm
Dimension b	16 mm
Dimension d max.	63 mm
Dimension d min.	53 mm
Dimension L	10 mm
Dimension s	35,3 mm
Dimension t1 (mm)	1,5
Dimension t2 (mm)	2

Dimension x	15 mm
Distance to the wall	yes
For diameter	53 - 63
Halogen-free	yes
Material	Stainless steel
Material thickness	1,5 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	yes
UV-resistant	yes
Version for	Closed

All types

All types

Types	Material thickness	Clamping range D, min.	Clamping range D, max.	Material	Item no.	Quantity	SSU
ASL 733 25 A2	1.5 mm	20 mm	25 mm	Stainless steel	1362986	piece	25 piece
ASL 733 36 A2	1.5 mm	30 mm	36 mm	Stainless steel	1362990	piece	20 piece
ASL 733 44 A2	1.5 mm	36 mm	44 mm	Stainless steel	1362992	piece	20 piece
ASL 733 53 A2	1.5 mm	44 mm	53 mm	Stainless steel	1362994	piece	20 piece
ASL 733 63 A2	1.5 mm	53 mm	63 mm	Stainless steel	1362996	piece	20 piece
