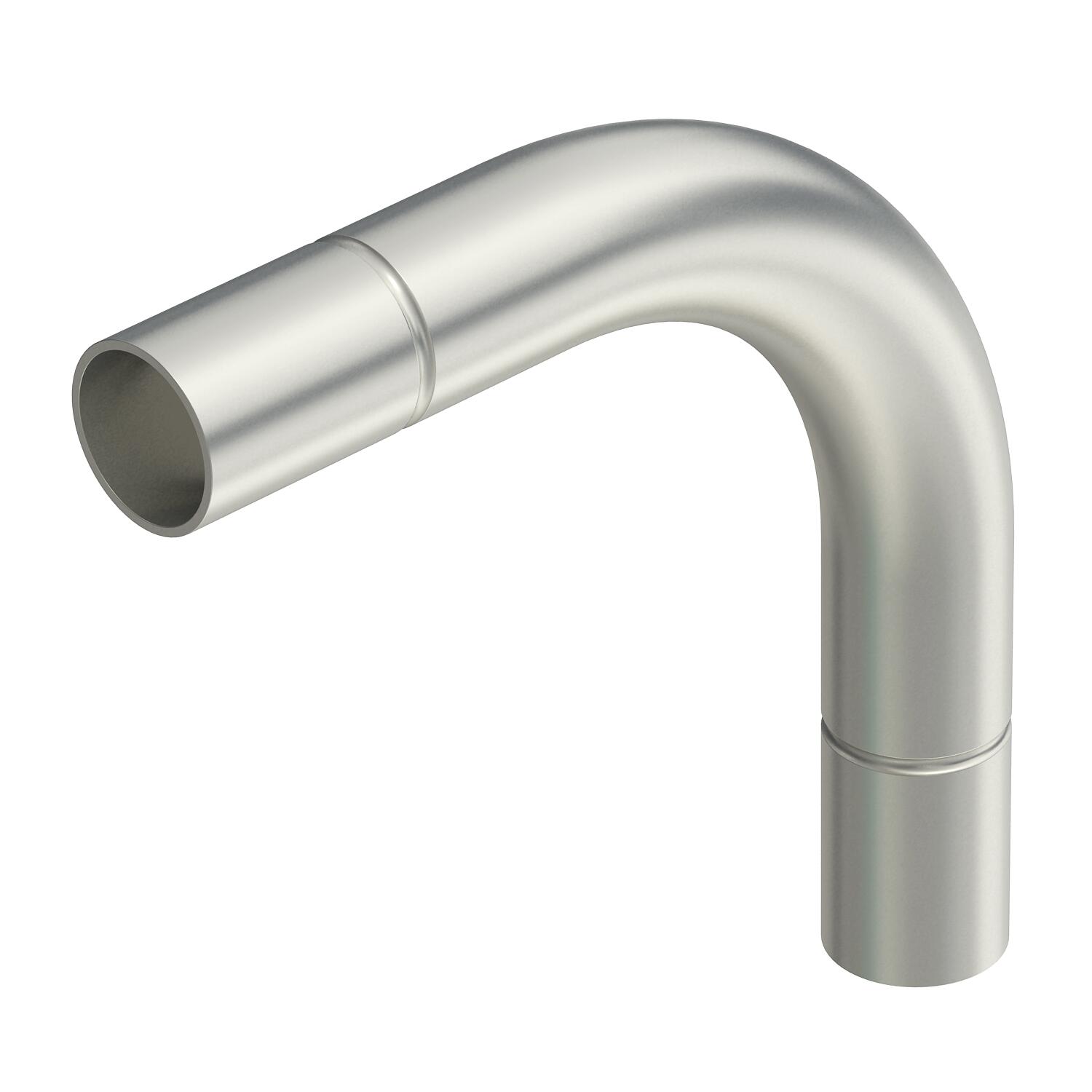

Stainless steel pipe bend, V4A
Item no. 2046764 | EAN 4012195924180
- Product description
-
Product description
90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
-
- Technical data
-
Technical data

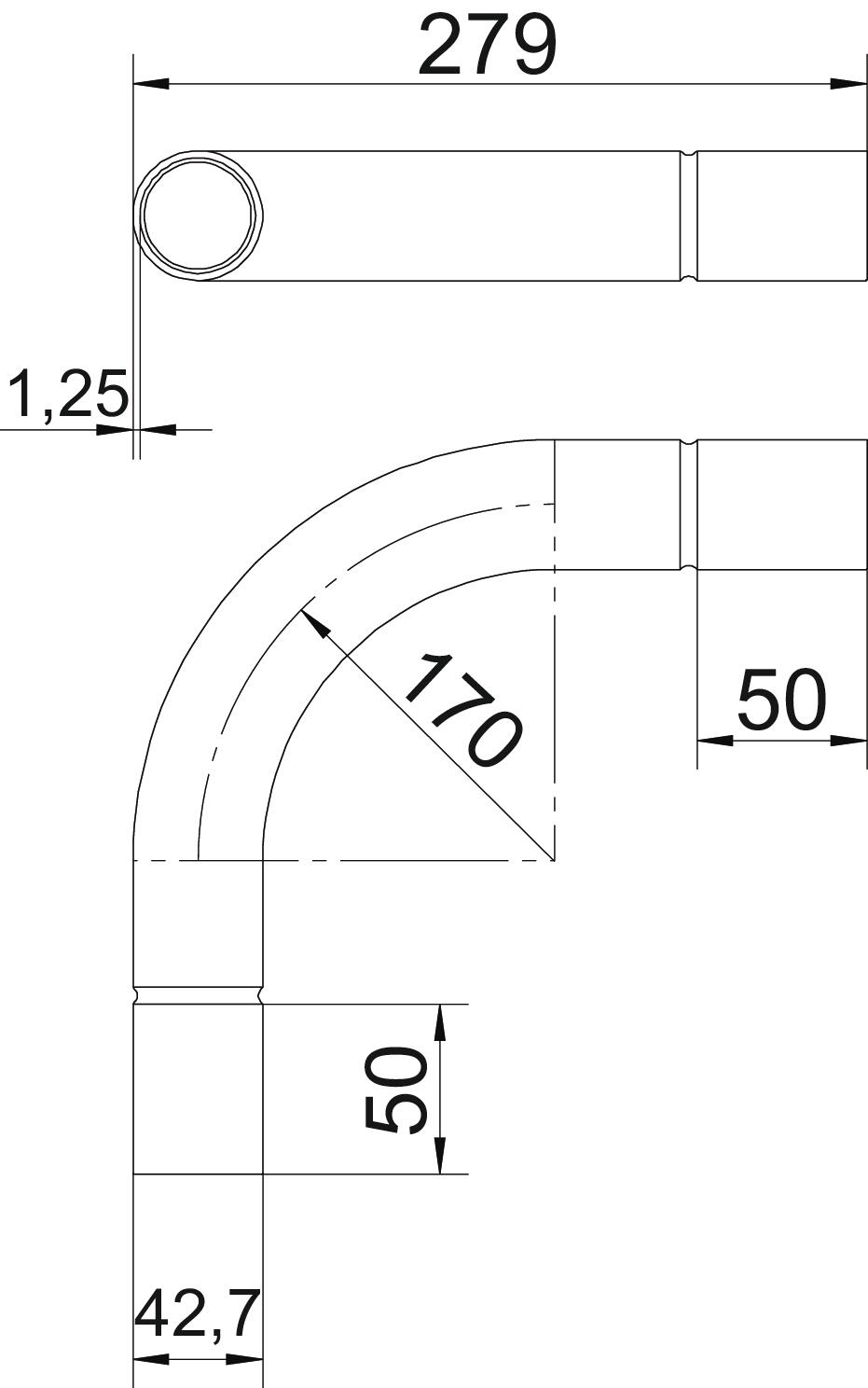

Angle of the bend 90 ° Brushed surface yes Dimension Ø40mm Dimension A 50 mm Dimension B 279 mm Dimension D 42,7 mm Dimension d 40,2 mm Dimension l 40 mm Dimension m (mm) M40 Dimension R 170 mm Dimension t 1,25 mm Flexible no For nominal pipe diameter 40 mm Halogen-free no Material Stainless steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Surface Bright, treated Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SB40W A4 / 2046764 , 0.22MB , pdfDeclaration of conformity SB40W A4 / 2046764 , 0.05MB , pdfREACH Declaration of conformity SB40W A4 / 2046764 , 0.12MB , pdfRoHS Declaration of conformity SB40W A4 / 2046764 , 0.12MB , pdf
