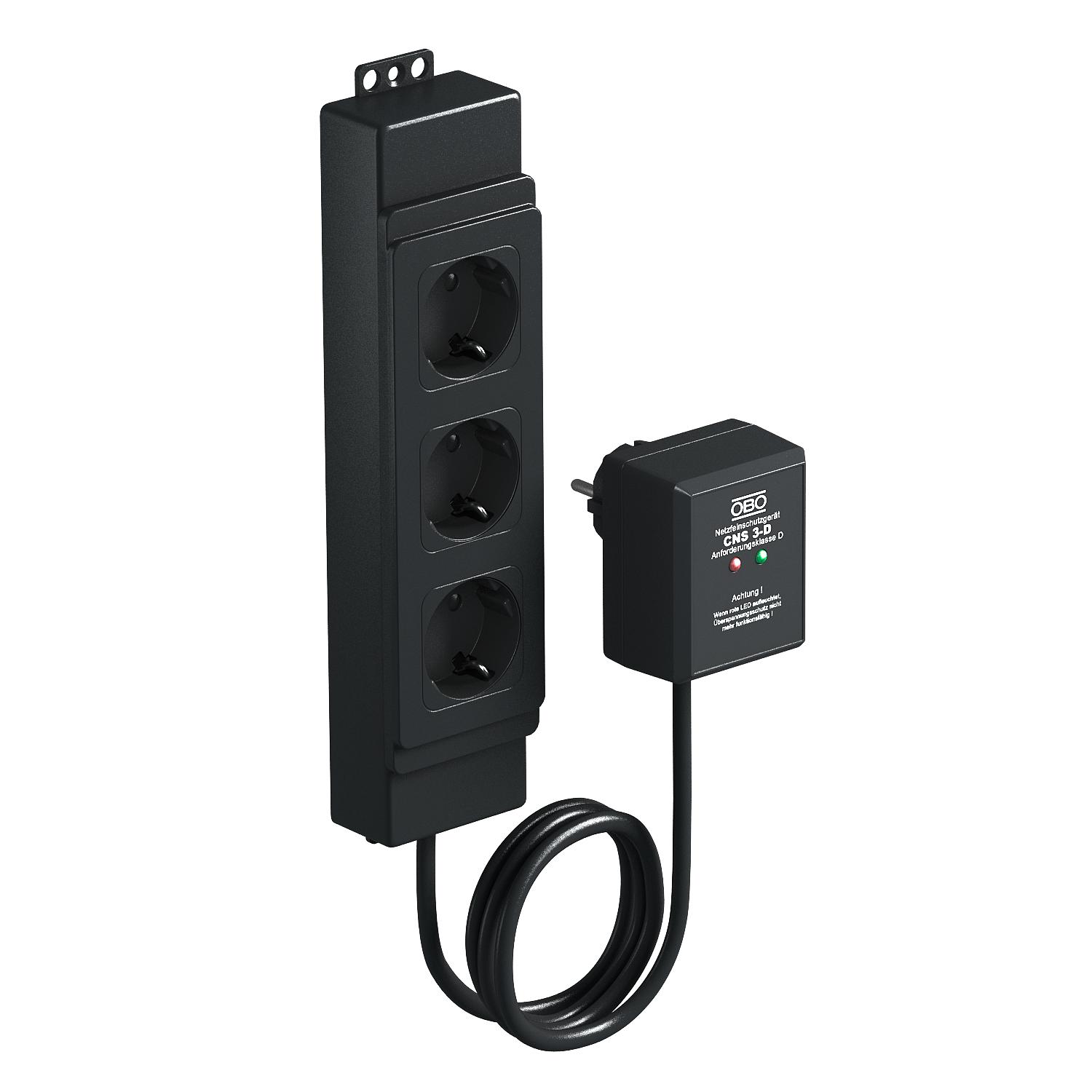

Surge protective device CNS 3 D
Item no. 5092701 | EAN 4012195952817
- Product description
-
Product descriptionSurge protective device, type 3, to DIN EN 61643-11,
intended for use in protective contact sockets.
• With visual and audible signalling, function display
• 3-way socket
• Length of connection cable: 2 m

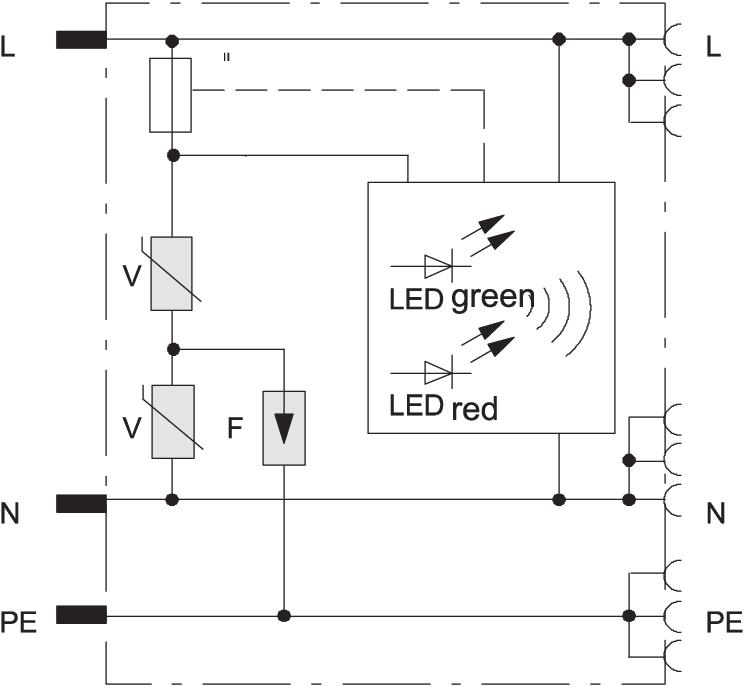

• Y circuit for high electrical safety
Application: For example, the protection of PCs, printers, copiers, fax machines, etc.
-
- Technical data
-
Technical data
Blow-out no Cable type for surge protection devices Power cable AV Colour Black Connecting cable length 2 m Country-specific version D Dimension 230V Lightning protection zone LPZ 2→3 Max. continuous operating voltage 255 V Maximum back-up fuse 16 A Nominal discharge surge current 2,5 kA Nominal voltage 230 V Protection level 1000/ 1500 kV Protection level (L-N / L/N-PE) < 1000 / < 1500 V Protection level (L-N) < 1,0 kV Protection level (N-PE) < 1,5 kV Rated current 16 A Response time <25 ns Signalling on device Optical and acoustic SPD to EN 61643-11 Type 3 SPD to IEC 61643-1 Class III Telecommunications contact no - All types
- Downloads
-
Data sheet CNS 3-D-D / 5092701 , 0.23MB , pdfEU declaration of conformity CNS 3-D-D / 5092701 , 0.10MB , pdfREACH Declaration of conformity CNS 3-D-D / 5092701 , 0.28MB , pdfRoHS Declaration of conformity CNS 3-D-D / 5092701 , 0.12MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfTechnical information Technical information, CNS-D; CNS-3-D , 0.07MB , pdf
