Terminal strip 2.5 mm² 61.75 | 0.8 | 2.5 | 660
morepic-1 morepic-2

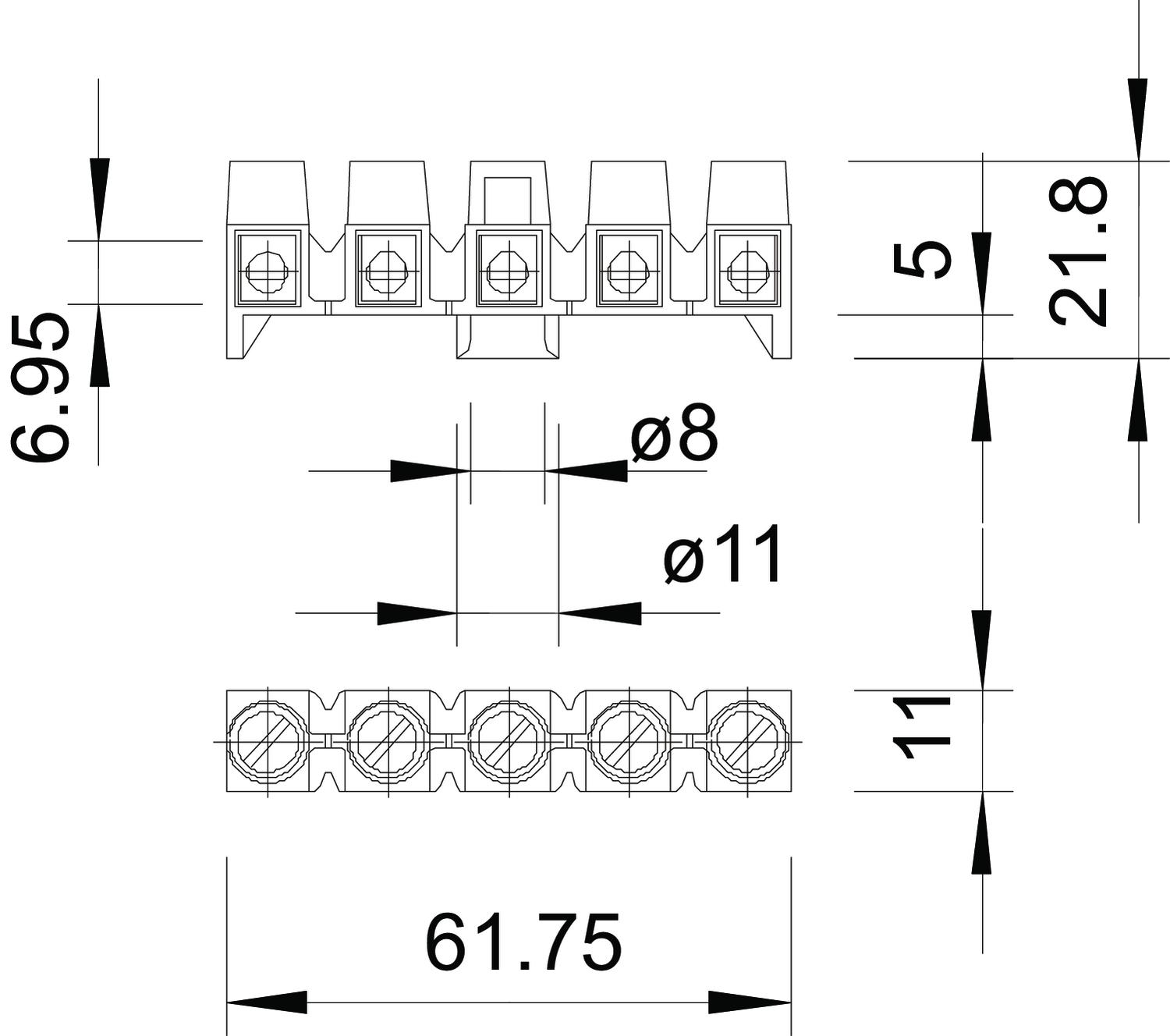

Terminal strip 2.5 mm²

Item no. 2017342 | EAN 4012195159377

2017342 / 689
61.75 mm
0.8 mm²
2.5 mm²
660 V
Product description
Product description

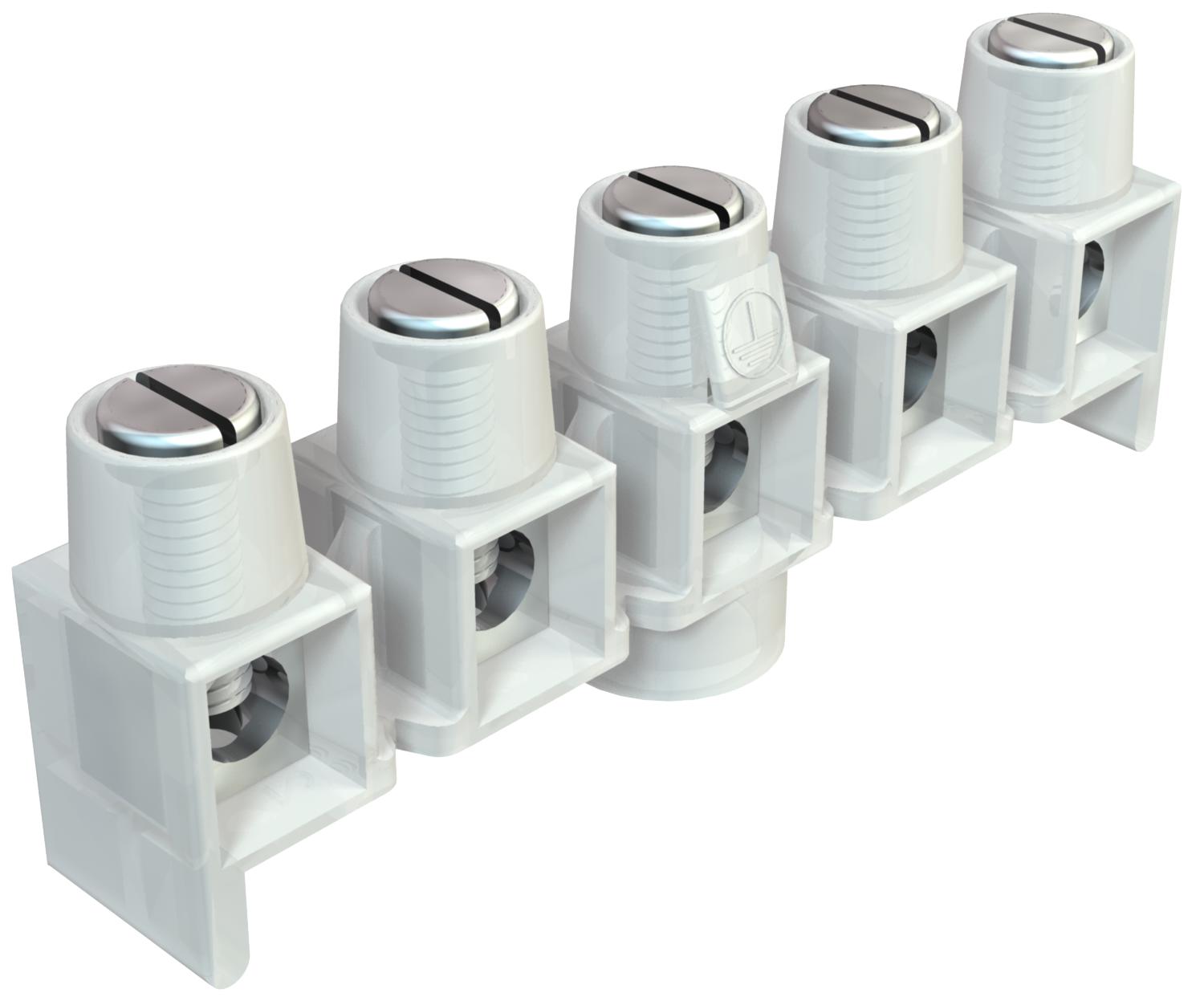

Brass terminal block, nickel plated, steel screws, electrogalvanised and transparently passivated, nominal cross section 0.8 ÷ 2.5 mm², nominal voltage 660 V, 5-pin, with socket terminals, max. connectable cross sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm², unused pins can be disconnected and used as individual terminals.
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Closing plate required no
Colour Natural
Connection position Side
Cross-section max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm² mm²
Dimension 4mm2
Explosion-tested version no
Height 21,8 mm
Insulation material Miscellaneous
Length 61,75 mm
Material Polyamide
No. of terminals 5
Nominal cross-section, max. 2,5 mm²
Nominal cross-section, min. 0,8 mm²
Nominal voltage 660 V
Number of screwless terminals per pole 1
Pole number 5
Transparent no
Version of electrical connection 1 Screw connection
Width 11 mm
All types

All types

Types Length Nominal cross-section, min. Nominal cross-section, max. Nominal voltage Item no. Quantity SSU
689 61.75 mm 0.8 mm² 2.5 mm² 660 V 2017342
50 piece
