Note: This article is discontinued.

Terminal strips, 4 mm², wire protection clamp, polyamide

Item no. 2056178 | EAN 4012195184393

2056178 / 74 D/EKL 1BEF2 D
12
4 mm²
450 V
Transparent
Product description

Product description

With wire protection clamp.

Tested according to EN 60998.

Brass terminals, steel screws, galvanised and blue passivated, 12-pin, individual terminals detachable.

Captive upwards screw.

Nominal cross-section 4 mm².

Nominal voltage 450 V.

Nominal current 32 A.

Max. attachment each side: 4 mm² single-wire or 4 mm² fine-wire.

Maximum approved ambient temperature to EN 60998: -5 to +85 °C.
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nominal cross-section 4 mm²
Technical data

Technical data

Ambient temperature 85 °C
Closing plate required no
Colour Transparent
Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 4 mm²
Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 0,5 mm²
Connectable conductor cross-section, single-wire, max. 4 mm²
Connectable conductor cross-section, single-wire, min. 0,5 mm²
Connection position Side
Cross-section Max. attachment each side: 4 mm² single-wire or 4 mm² fine-wire mm²
Dimension 4,0mm²

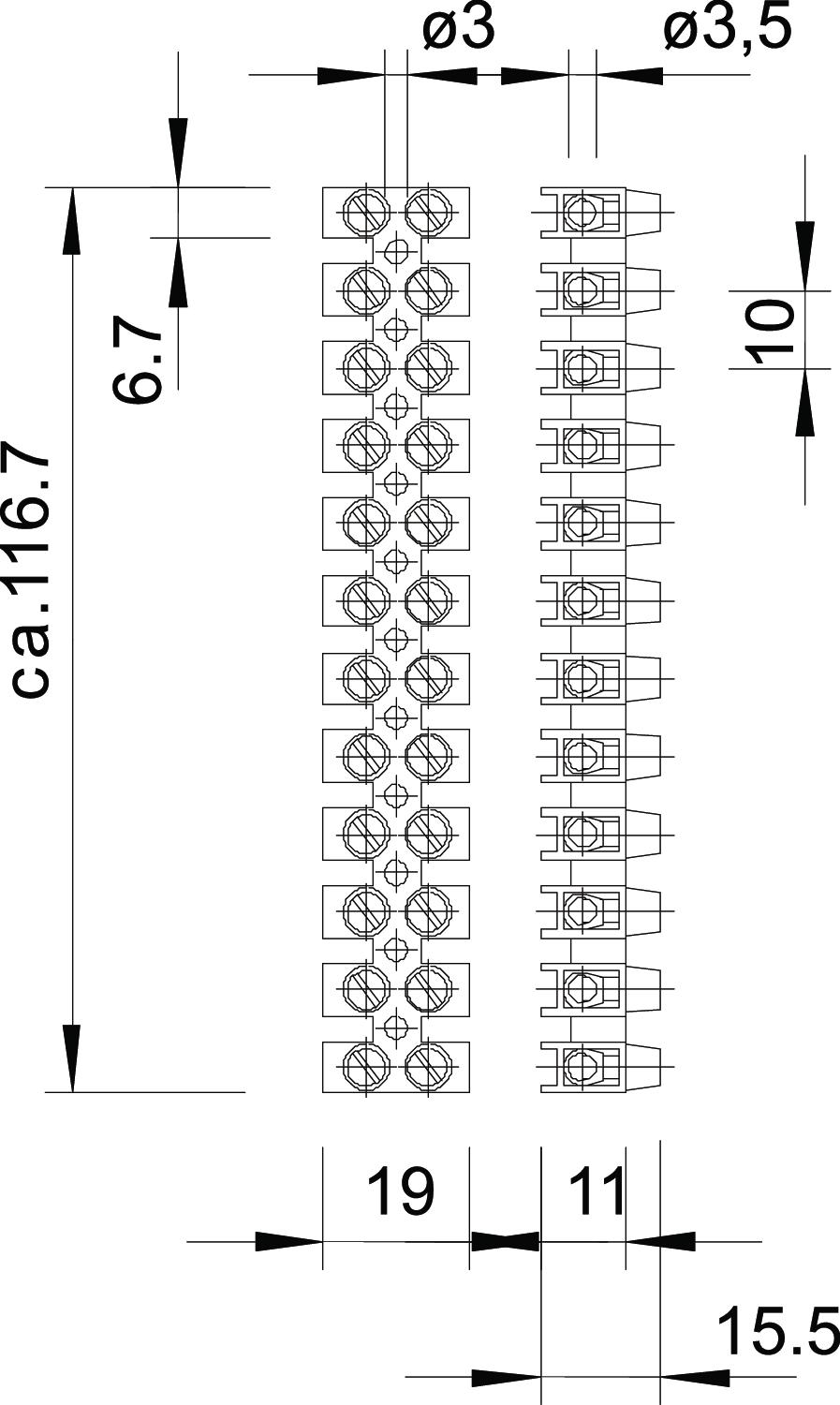

Drill hole spacing, centre 10 mm
Explosion-tested version no
Height 15,5 mm
Insulation material Thermoplast
Length 116,7 mm
Material Polyamide
No. of terminals 12
Nominal cross-section, min. 4 mm²
Nominal current 32 A
Nominal voltage 450 V
Number of screwless terminals per pole 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -5 °C
Pole number 12
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors yes
Transparent yes
Version of electrical connection 1 Screw connection
Version of electrical connection 2 Screw connection
Width 19 mm
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal voltage Colour Item no. Quantity SSU
74 D/EKL 1BEF2 D 12 4 mm² 450 V Transparent 2056178
10 piece
