UDHOME2 data technology support type A
Item no. 7368470 | EAN 4012196692538
- Product description
-
Product description

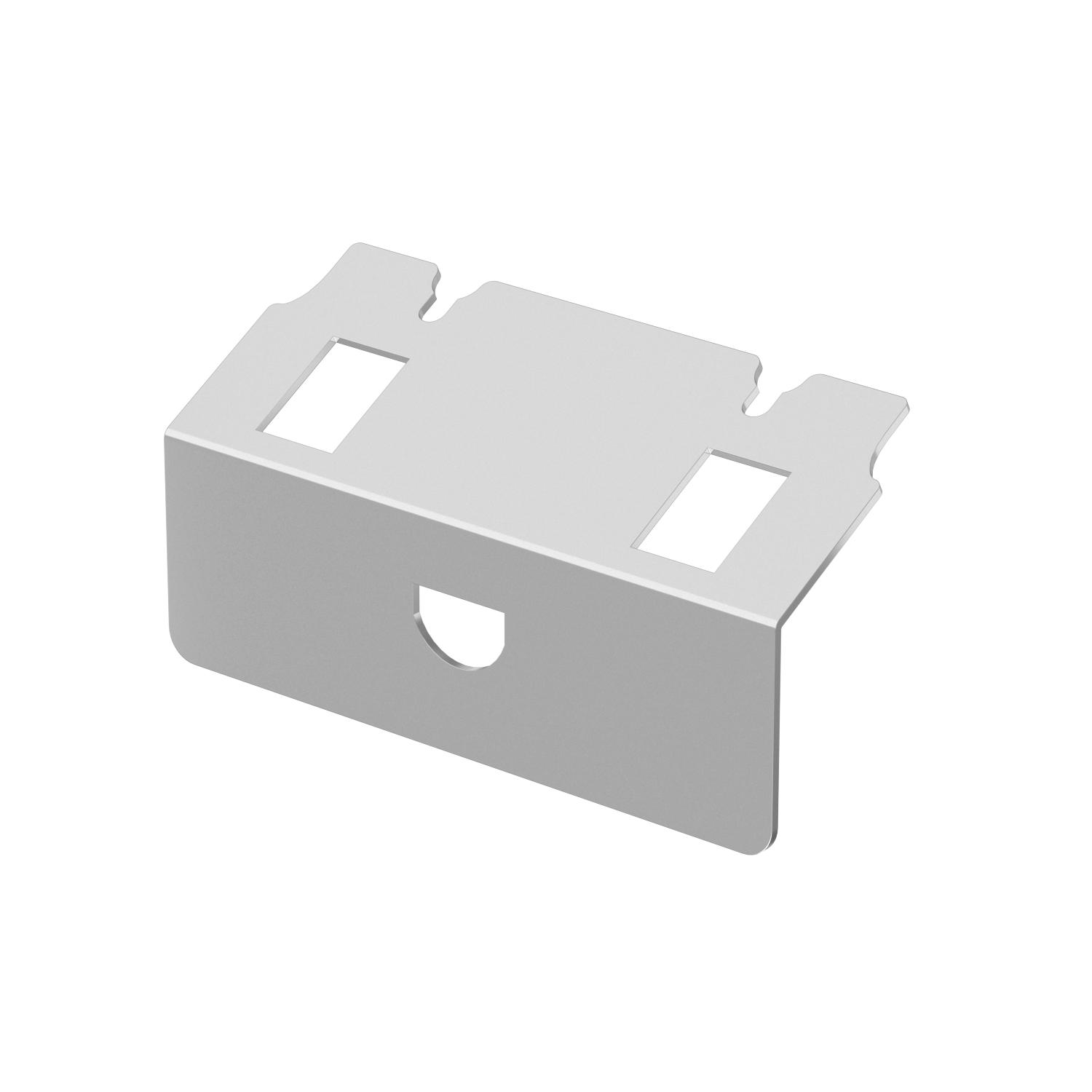

Mounting support to accommodate two data connection modules of type A: AMP TYCO: Standard 110Connect, SL Series 110Connect and Toolless, AMP-Twist; Brand-Rex: unshielded; GG45; TKM RJ MOD; Nexans: LANmark with Adapter-Clip; Siemon CAT6; 3M K6 and K10.

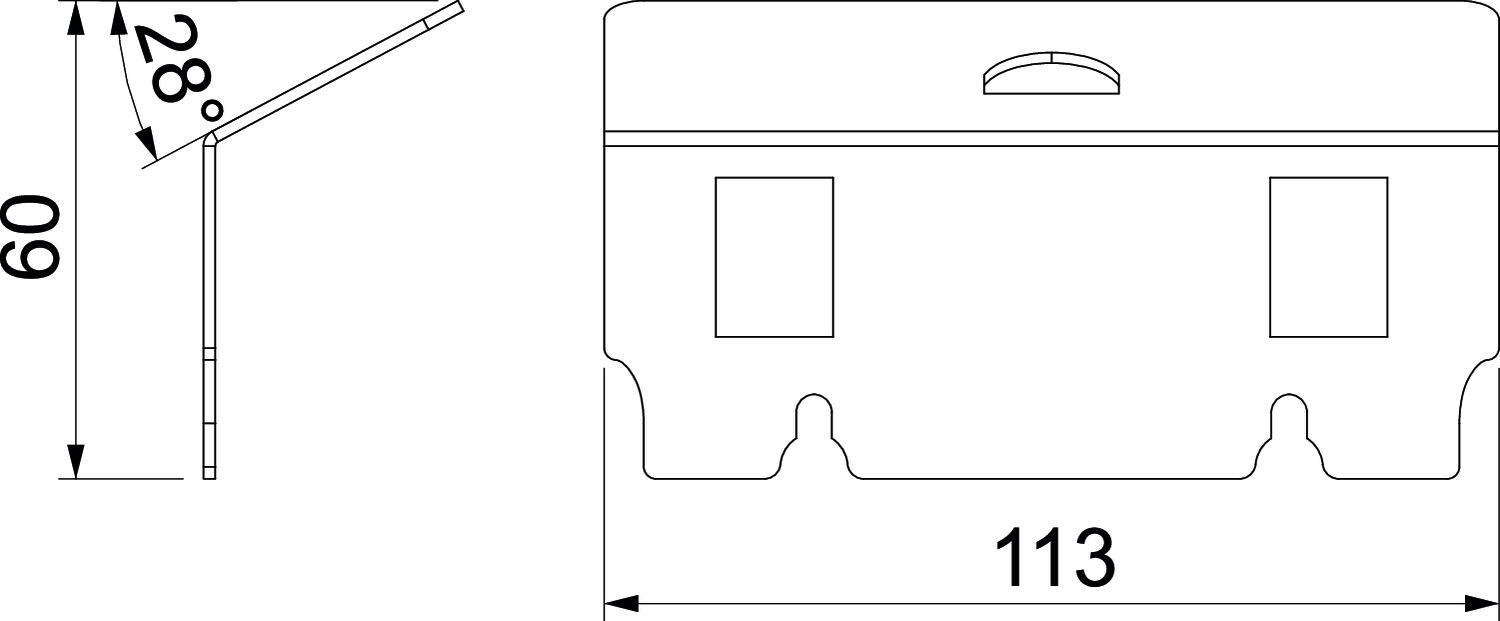

Dimensions of a mounting opening in mm: 20.10 x 14.80.
-
- Technical data
-
Technical data
Approvals VDE Device type Data technology Fastening type Lockable Heavy-duty version no Installation technology Miscellaneous Labelling panel no Material Stainless steel Nominal size for device installation units 2 Number of installable devices 2 Standard EN 50085-2-2 Suitable for wet care no - All types
- Downloads
-
Data sheet DT UH2 A / 7368470 , 0.15MB , pdfDeclaration of conformity DT UH2 A / 7368470 , 0.13MB , pdfMounting instructions Mounting instructions, data technology support DT UH2 , 0.11MB , pdf
