Note: This article is discontinued.
Underfloor installation duct, 3-compartment, trunking height 38 mm
Item no. 7400328 | EAN 4012195089346
- Product description
-
Product descriptionUnderfloor installation duct for laying cables under the floor.
-
- Technical data
-
Technical data
Application area Screed-covered CO₂ Footprint (GWP) Cradle-to-Gate 9,845 kg CO₂e / 1 Meter Cross-section, draw a 3168 mm² Cross-section, draw b 2484 mm² Decouplable no Dimension 2000x250x38 Dimension a 90 mm Dimension b 70 mm Dimension h 38 mm Duct height, min. 38 mm Floor plate yes Height 38 mm Length 2000 mm Material Steel Number of compartments 3 St. Number of fixed partitions 2 Removable cover no Surface Strip galvanized Usable cross-section 8820 mm² Width 250 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

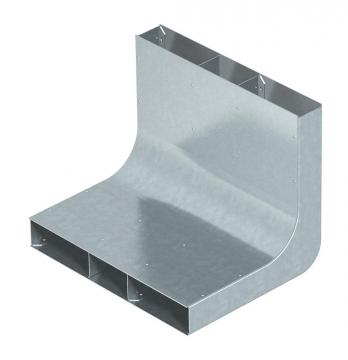

Vertical bend, three-compartment, height 38 mm
KV3 25038 7400648 1 piece
Connection shackle, height 38 mm
VL 25038E 7400968 1 piece - Downloads
-
Data sheet S3 25038 / 7400328 , 0.19MB , pdfEU declaration of conformity S3 25038 / 7400328 , 0.13MB , pdfUK Declaration of Conformity S3 25038 / 7400328 , 0.14MB , pdfREACH Declaration of conformity S3 25038 / 7400328 , 0.12MB , pdfRoHS Declaration of conformity S3 25038 / 7400328 , 0.12MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdf
